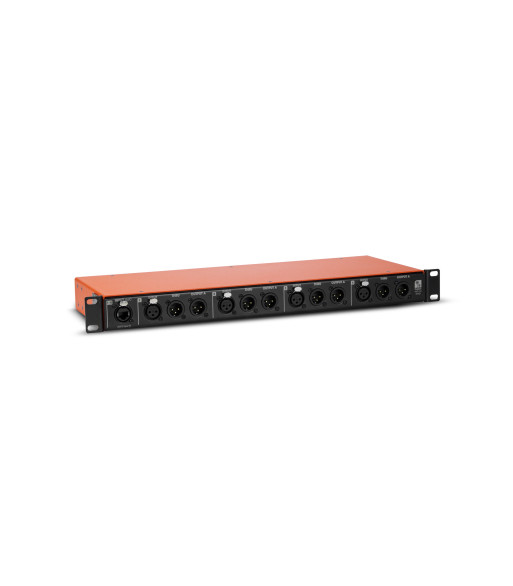

Palmer 4-Channel Passive Line Splitter with Audio-over-Cat

3.539,00 kr.
Inkl. moms

DELTA 4PL is a passive 4-channel line splitter for professional audio applications and part of the Palmer Audio over Cat ecosystem. It reliably distributes line-level signals to multiple outputs without the need for external power.

Compliant with the common AES72 Type 5E standard, DELTA 4PL is fully compatible with such Audio-over-Cat systems and integrates easily into existing infrastructures.

Each of the four channels provides one THRU output and two galvanically isolated, transformer-balanced XLR outputs. Symmetrical signal routing with impedance matching ensures clean transmission and eliminates ground loop noise. All 4 channels can also be transmitted via a single Cat cable, which is especially useful in fixed installations with limited or discreet cabling.

The rugged 1U 19-inch housing is designed for standard rack mounting in both permanent and mobile environments. The reversible rack mounts allow convenient mounting from the front or rear for easier access to the most frequently used connections.

Ideal for installations, studios, and touring setups where passive signal splitting, Audio-over-Cat compatibility, and maximum reliability are essential. DELTA 4PL delivers pure, unaltered audio and robust performance. Engineered in Germany. Made in Europe.

Antal
Klar til afsendelse fra fjernlager

  • 4 independent line splitters in a solid 19" housing (1U)
  • 3 balanced XLR outputs per channel (1x THRU output and 2x galvanically isolated)
  • Balanced line-level splitting with impedance matching
  • Audio over Cat In- and output (AES72 Type 5E) for forwarding all signals via a single Cat cable
  • Eliminates ground loop hum thanks to galvanic transformer isolation
  • Designed to handle high-level line signals up to +20dBu without distortion
  • Extremely fail-safe, no power supply required
  • Pure and unaltered low-noise audio
  • Engineered in Germany, Made in Europe


General

TypePassive
MaterialSteel sheet
Isolated transformerYes
Transformer Ratio1:1:1
Ground LiftYes
Number of inputs4
Number of outputs12
Number of channels4

Inputs

Input signal typeAES72 (type 5E), Balanced
Max. input level (< 1% THD, rel. 20 Hz)20 dBu
Max. input level (< 1% THD, rel. 1 kHz)20 dBu
Input impedance (Ra = 1 kΩ)10 kΩ

Outputs

Output signal typeAES72 (type 5E), Balanced
Number of line outputs2
Output impedance (Ra = 600 Ω)300 Ω
Linked outputs per channel1

Signal processing

Max. THD (1 kHz, +4 dBu, unity, unweighted)0.04 %
Max. THD (30 Hz, +4 dBu, unity, unweighted)1.5 %
Max. IMD (SMPTE, 7 kHz, 4:1, +4 dBu)0.02 %
Max. IMD (SMPTE, 60 Hz, 4:1, +4 dBu)0.02 %

Environmental

Maximum air humidity (non-condensing)80 %

Dimensions & weight

Width483 mm
Height44 mm
Depth176 mm
Rack width19"
Rack height1 U
Weight3.35 kg
Palmer
PDELTA4PL
