Palmer Audio over Cat Loom from etherCON to 4 x XLR female

889,00 kr.
Inkl. moms

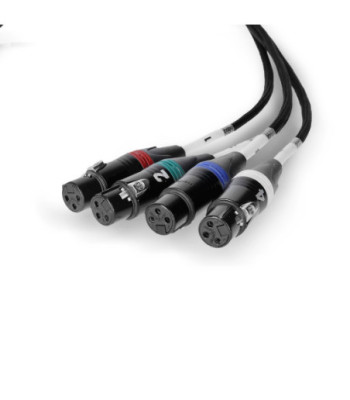

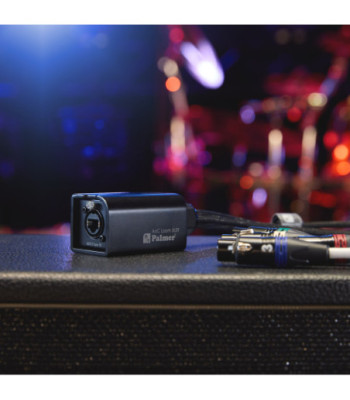

The P AOC L XLR F is a multicore adapter cable that facilitates the stable transmission of 4 separate analog and balanced audio signals or 8 digital AES3 signals through a network cable (not included). The female XLR plugs are numbered and color-coded for easy identification. The Ethercon connection is safeguarded against unlocking to prevent accidental cable disconnection.

In addition to audio signals, the P AOC L XLR F enables the transmission of DMX, or MIDI control signals, along with 48-volt phantom power, via a single, standard Ethernet cable. This versatility allows it to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions.

Featuring high-quality Neutrik components, a solid aluminum-steel housing, and robust mesh cables with a 50 cm splice, the P AOC L XLR F guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appeal of any setup.

All these factors make the P AOC L XLR F a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you have always come to expect from Palmer.

Antal
Klar til afsendelse fra fjernlager

  • 4 balanced analogue or 8 digital AES3 audio channels over Cat5e or higher (Ethernet cable not included)
  • etherCON to 4 x XLR female
  • AES72 Type 5E
  • Compatible with 48-volt phantom power
  • Premium Neutrik components
  • Robust mesh cable, 0.5 m
  • Solid casing made of aluminium and steel
  • Engineered in Germany

Product typeAudio over Cat adapter
Number of inputs4
Input typeBalanced
Input ConnectorRJ45
Number of outputs4
Output typeBalanced
Output connectorXLR female
MaterialAluminium
MaterialSteel
Cable Length0.5 m
Width80 mm
Depth45 mm
Height45 mm
Weight0,39 kg
Operating Temperature- 20 - 70 °C
Air humidity< 80 % ( non-condensing )

Audio

Max. input level (< 1% THD, 1 kHz)+ 32 dBu dBu
Frequency range0 Hz - 20 kHz
THD (1 kHz, +4 dBu, unity, unweighted)< 0,0005 %

RJ45 pin layout (AES72 Type 5E, balanced wired, even = +)

Pin 1Channel 3 -
Pin 2Channel 3 +
Pin 3Channel 4 -
Pin 4Channel 1 +
Pin 5Channel 1 -
Pin 6Channel 4 +
Pin 7Channel 2 -
Pin 8Channel 2 +

Channel color code

Channel 1Red
Channel 2Green
Channel 3Blue
Channel 4White
Palmer
PAOCLXLRF
