Palmer 2x2 Dante® interface

3.519,00 kr.
Inkl. moms

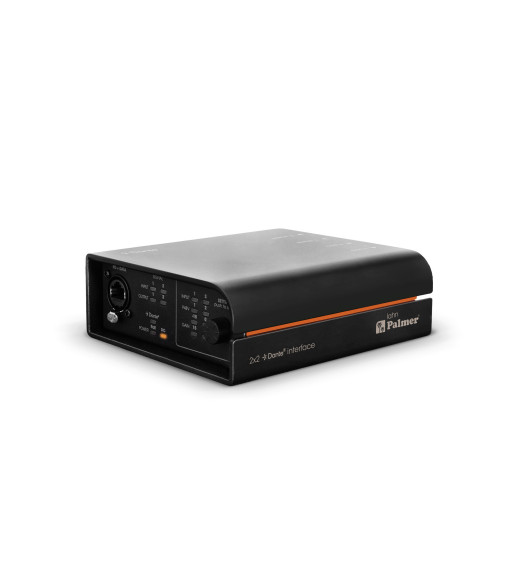

With the Palmer RIVER lahn you can integrate analogue audio devices into a Dante® network: the lahn is an end-of-network interface that can be used to feed two analogue microphone or line signals into a Dante® network. Thanks to the bidirectional functionality, Dante® signals can also be converted into high-quality analogue audio signals to feed them into mixers, amplifiers, or loudspeakers.

With four-stage gain control and 48 V phantom power per channel, the RIVER lahn offers precise control and flexibility for various application scenarios. The lockable XLR audio connectors and the Neutrik® etherCON® network socket ensure secure connections, while the simple configuration on the front and the user lock on the control panel ensure user-friendly handling.

Each channel is equipped with a signal display that shows you the status of your audio transmission at all times. In addition to the power supply unit included in the packaging content, PoE (Power over Ethernet) can also be used for the power supply, which offers additional flexibility with regard to installation. Developed in Germany, the RIVER lahn is compatible with Dante® Domain Manager and AES 67. The solid aluminium and steel housing guarantees durability and robustness, making it ideal for use in demanding environments.

Experience the seamless integration of analogue and digital audio technology with the Palmer® RIVER lahn and benefit from first-class audio quality and ease of use.

Antal
Klar til afsendelse fra fjernlager

  • Dante® interface with two inputs and two outputs
  • Feeding two analogue microphone or line signals into Dante® networks
  • Conversion of Dante® signals for mixers, amplifiers, loudspeakers, etc.
  • Four-stage gain control and 48 V phantom power per channel
  • Lockable XLR audio connections and etherCON® network socket from Neutrik®
  • Simple configuration on the front and user lock
  • Signal display for each channel
  • Compatible with Dante® Domain Manager and AES 67
  • Solid aluminium and steel housing
  • Engineered in Germany

Product type2 x 2 I/O Dante Interface
Inputs2
Input typeSwitchable Balanced mic or line level
Line outputs2
Output typeBalanced line level with auto mute relay on loss of Dante/AES67 signal
CoolingConvection

Analogue Input Section

Number of input connectors2
ConnectorXLR-F
Mic input sensitivity63 mV (gain +30 dB)
Nominal input clipping19 dBu (Sine 1kHz, Gain -15 dB)
Frequency response10 Hz - 20 kHz (-0.5 dB)
THD + Noise< 0.003 % (gain -15 dB, input 4 dBu, 20 kHz BW)
Input Impedance38 kohm (balanced)
Crosstalk< -100 dB (input 18 dBu, 20 kHz BW)
SNR> 112 dB (gain -15 dB, input 20 dBu, 20 kHz BW, a-weighted)
CMRR> 45 dB
Phantom Power (per input)+ 48 VDC @ 10 mA max
Gain-15dB, 0dB, +15dB, +30dB

Analogue line outputs

Number of output connectors2
Connection typeXLR male
Max. output level19 dBu
Intermodulation Distortion (SMPTE)< 0.005 % (-20 dBFS to 0 dBFS)
THD + N< 0.002% (-4 dBFS, 20 kHz BW)
Idle Noise< - 85 dBu
Dynamic Range> 103 dB (0 dBFS, AES 17, CCIR-2k weighting)
Frequency range15 Hz - 20 kHz (-0,5 dB)

Dante™ Specifications

Audio Channels2 inputs / 2 outputs
Bit depth AD/DA converter24/32 bit
Sampling frequency48 kHz
System Latency:Minimum 1 ms
Connector DANTE100 BASE-T RJ45

Power over Ethernet (PoE) specifications

Minimum PoE RequirementsPoE+ IEEE 802.3at

Power input requirements

Input voltage24 V DC
Minimum Current500 mA
Power connector5.5 mm Barrel Jack, inner 2.1 mm
Max. Power consumption12 W
Idle power consumption7.5 W (no signal input)
Mains Inrush Current2 A @ 230 V AC
Operating temperature ( non-condensing )0°C - 40°C; < 85% humidity, non condensing

General data

MaterialAluminum chassis
MaterialSteel front panel
WAF60%
Dimensions (W x H x D) ( height with rubber feet )128 x 50 x 140 mm
Weight0,96 kg
Accessories (included)External power supply with interchangeable plugs
Accessories (included)Inscription label (tour label)
