Palmer Active DI box

2.109,00 kr.
Inkl. moms

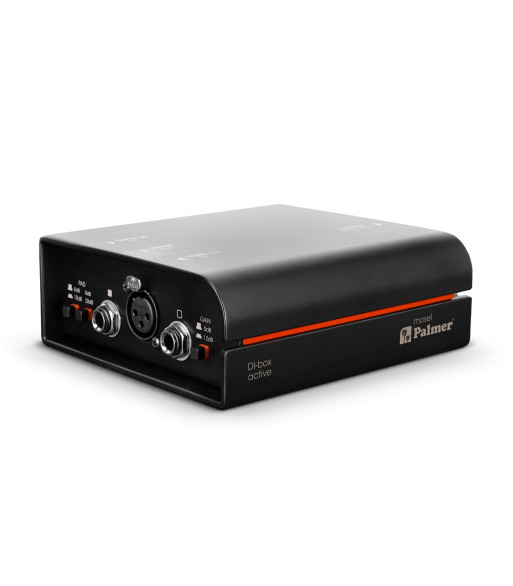

Need a little more? Are you looking for a DI box that's not just great for the stage, but that also exploits the full sound potential of your instrument in the studio? The Palmer mosel is a DI box of uncompromising premium quality with useful additional features. Its active switching guarantees a particularly high input impedance for punchy, pure sound. The unbalanced, high impedance signal from magnet and piezo pickups is changed to a low impedance, balanced output signal with no loss of brilliance - even on longer cable runs. The Palmer mosel is also suitable for synthesisers and other electronic keyboards, since it is extraordinarily stable.

The output transformer - which offers galvanic separation to eliminate ground loops - can process studio levels of up to +20 dBu. In addition, the mosel is enclosed in Mu-metal to eliminate electromagnetic interference.

The Palmer mosel offers two extra special features: a variable pad (-10/20/30 dB) and a boost function (+12 dB). These features allow you to always achieve the optimal level for noise-free recordings. The mosel is also extemely practical because the unbalanced input exists not only in jack format, but also as XLR sockets. This makes unstable adapters unnecessary. The ground lift switch - to separate from ground lifts - also has a soft lift setting. Power for the mosel can be provided either by a 48V phantom power unit or a 9V battery.

The Palmer mosel is a high-end active DI box for studio use and demanding PA work. And for times when good is just not good enough! Choose the best - choose the mosel.

Antal
Klar til afsendelse fra fjernlager

  • Balancing and impedance matching for guitar/bass/keyboards/synthesisers
  • Premium design: high headroom, low noise floor, ultra-efficient ground lift
  • Prevents humming through galvanic transformer isolation with Mu-metal shielding
  • Neutral sound thanks to active input stages with high impedance

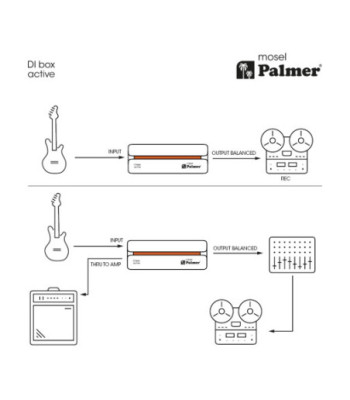

  • THRU connection for passing the input signal to the amplifier
  • Handles even very high-level inputs without distortion
  • Variable pre-attenuation for high-level inputs plus a boost for weak signals
  • Power supply via 9V battery or 48V phantom power unit
  • Road-ready casing made of aluminium and steel plate
  • Incl. rewritable tour label for attachment on to the back of the mosel
  • Engineered in Germany

General

TypeActive
Included AccessoriesRubber feet, Tour label
Isolated transformerYes
Transformer Ratio1:1
Ground LiftSoft, Hard
On/Off switchYes
Frequency response (±1 dB, rel. Avg)20 - 20,000 Hz
Number of inputs1
Number of outputs1
Number of channels1

Inputs

Input signal typeUnbalanced
Input connector typesXLR 3-pole female, 6.3 mm Jack TS
Number of mic/line inputs1
Number of instrument inputs1
Max. input level (< 1% THD, rel. 20 Hz)14 dBu
Max. input level (< 1% THD, rel. 1 kHz)21 dBu
Input impedance600 kΩ
Input pad0 dB, 10 dB, 20 dB, 30 dB
Input gain0 - 12 dB

Outputs

Output signal typeBalanced
Output connector typesXLR 3-pole male
Linked outputs per channel1

Line output performance

Max. output level14 dBu
Balanced output impedance (1 kHz)83 Ω

Signal processing

Min. SNR (+4 dBu, 22 kHz BW, unity, unweighted)113 dB
Max. THD+N (1 kHz, +4 dBu, unity, unweighted)0.006 %
Max. THD+N (30 Hz, +4 dBu, unity, unweighted)0.35 %
Max. IMD (SMPTE, 7 kHz, 4:1, +4 dBu)0.0087 %
Max. IMD (SMPTE, 60 Hz, 4:1, +4 dBu)0.0087 %

Mains operation

Operation voltage48 V phantom power
Rated power0.5 W

Battery operation

Built in battery testerYes

Housing

Chassis materialAluminum continuous casting

Environmental

Ambient temperature-20 - 70 °C
Maximum air humidity (non-condensing)80 %

Dimensions & weight

Width140 mm
Height50 mm
Depth128 mm
Weight0.72 kg
Palmer
PMOSEL
