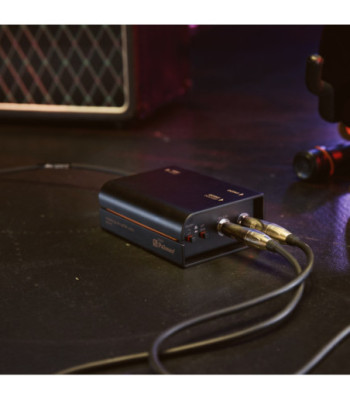

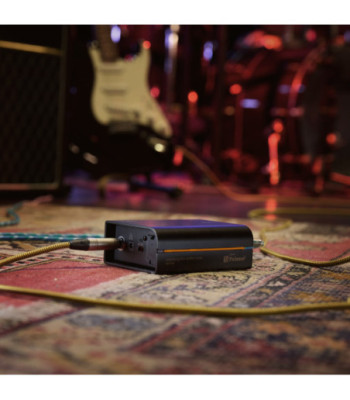

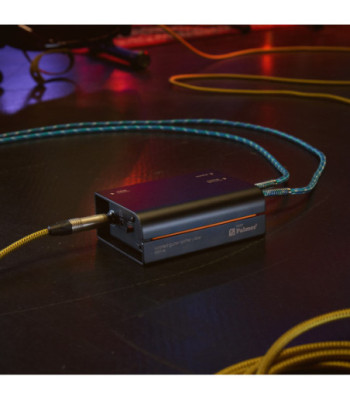

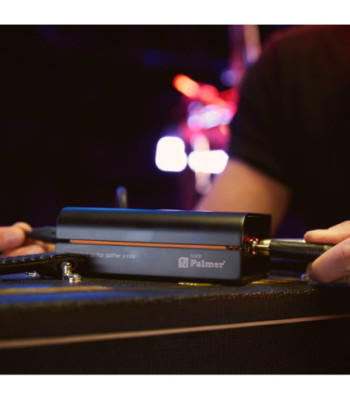

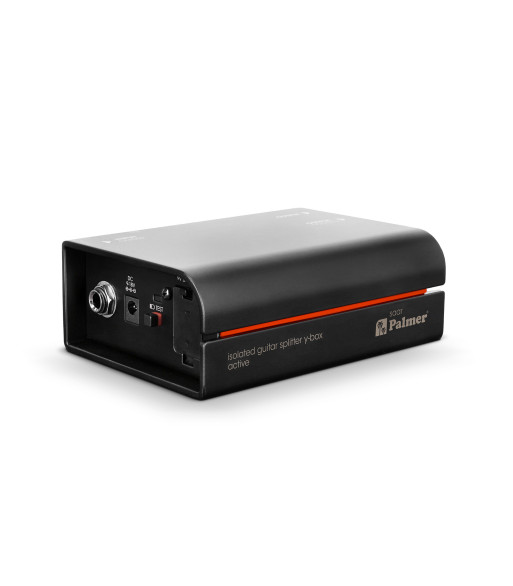

Palmer Active guitar splitter Y-Box

1.379,00 kr.
Inkl. moms

So, you want to play your guitar or your bass through two amps at the same time? Great idea! The problem is, it hums. And not just a little bit either. In fact, it makes a real racket. Thankfully, the Palmer saar Guitar Splitter box is here to save the day. The saar separates the ground potentials of both amplifiers and prevents ground loop hum when interconnecting multiple amps.

The Palmer saar loops through the input signal passively to amp out 1, while an active FET switch branches off the signal for amp out 2. This happens without sound loss, as the FET input level is extremely high impedance. Amp out 2 is also decoupled from the ground circuit by a transformer. Ground loops can be separated by pressing the ground lift switch.

The signal from amp out 2 is low impedance and reliable, so that longer cable runs without sound loss are also possible. An important feature is the phase reverse switch for the second output. The signal polarity of guitar/bass amplifiers is not standardised. Two amps operated simultaneously can be in-phase or out-of-phase. In the latter case, the sound is unpleasantly thin - which can be resolved by pressing the phase reverse switch on the Palmer saar. Of course, you can also use the phase reverse feature as a sound design tool if you wish: the out-of-phase sound can sometimes be a great creative option!

The Palmer saar is a simple and effective tool that lets you enjoy the larger-than-life sound of two amps simultaneously - without any hum or interference.


Antal
Klar til afsendelse fra fjernlager

  • Distributes the guitar/bass signal to two outputs/amps simultaneously
  • Reliably prevents ground loop hum through isolation transformer
  • No sound loss thanks to active FET input switching
  • Input signal looped through to amp 1 output
  • Amp 2 output is actively buffered and also withstands longer cable runs with no sound loss
  • Phase reverse switch for output 2 for top quality sound with out-of-phase amps
  • Ground Lift Switch
  • Power supply via 9V battery or general 9V mains supply
  • Road-ready aluminium and steel casing
  • Incl. rewritable tour label for attachment on to the back of the saar
  • Engineered in Germany

General

TypeActive
Included AccessoriesRubber feet, Tour label
Isolated transformerYes
Transformer Ratio1:1,1
Ground LiftYes
On/Off switchNo
Frequency response (±1 dB, rel. Avg)20 - 20,000 Hz
Number of inputs1
Number of outputs1
Number of channels1

Inputs

Input signal typeUnbalanced
Input connector types6.3 mm Jack TS
Number of instrument inputs1
Max. input level (< 1% THD, rel. 20 Hz)21 dBu
Max. input level (< 1% THD, rel. 1 kHz)24 dBu
Input impedance1 MΩ

Outputs

Output signal typeUnbalanced
Output connector types6.3 mm Jack TS
Linked outputs per channel1
Linked output connector type6.3 mm Jack TS

Line output performance

Max. output level20 dBu
Balanced output impedance (1 kHz)64 Ω

Signal processing

Min. SNR (+4 dBu, 22 kHz BW, unity, unweighted)120 dB
Max. THD+N (1 kHz, +4 dBu, unity, unweighted)0.0005 %
Max. THD+N (30 Hz, +4 dBu, unity, unweighted)0.0006 %
Max. IMD (SMPTE, 7 kHz, 4:1, +4 dBu)0.0015 %
Max. IMD (SMPTE, 60 Hz, 4:1, +4 dBu)0.0015 %
Measuring conditions, unless otherwise specified600 Ω generator source impedance (including open inputs) and 1 kΩ balanced load.

Mains operation

Operation voltage9 V DC - 18 V DC (external power supply)
PolaritySwitchable
Rated power0.5 W

Battery operation

Built in battery testerNo

Housing

Chassis materialAluminum continuous casting

Environmental

Ambient temperature-20 - 70 °C
Maximum air humidity (non-condensing)80 %

Dimensions & weight

Width140 mm
Height50 mm
Depth98 mm
Weight0.57 kg
