LD Systems PA Power Amplifier Class D 2 x 100 W 4 Ohms

2.309,00 kr.
Inkl. moms

XS 200LD Systems XS200 Power Amplifier

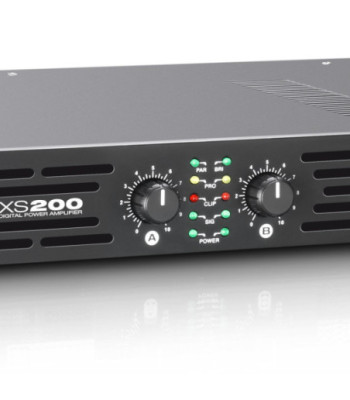

The XS200 is an extremely compact, dependable Class D power amplifier with an output of 100W per channel at 4 ohms and a transmission range of 20Hz _ 20kHz. With just 1U and a weight of 3kg, it is conceived for all professional applications in which ease of transport or space is important, whether mobile, in installations or at home, since no fan is required.

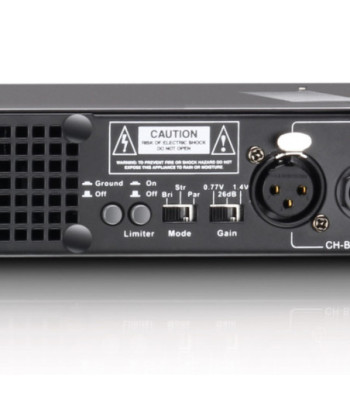

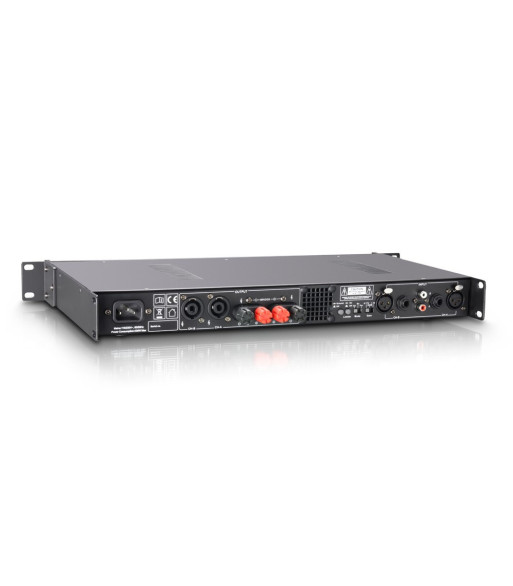

The XS200 is protected against short-circuiting, DC, overheating, and overloading and has a soft-start delay. The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs. Slide switches on the rear panel let you select the mode of operation and gain and activate the limiter and the ground-lift function for eliminating ground loop hum. LEDs indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation. The XS200 impresses with its high dynamics, impulse fidelity, and transparent sound.

Antal
Klar til afhentning // afsendelse fra eget lager

Product type Power Amplifiers
Type PA Power Amplifiers
Rated ouput power (1kHz @ 4 Ohms) 2 x 100 W
Rated ouput power (1kHz @ 8 Ohms) 2 x 50 W
Rated ouput power (1kHz @ 8 Ohms, bridged) 200 W
Output circuitry Class D
Frequency response 20 - 20000
Total Harmonic Distortion (THD) < 0.1 %
Gain 30 dB / 26 dB / 24 dB dB
Input sensitivity 0.77 V / 1.1 V / 1.4 V (passed) V
Protection circuits DC
Protection circuits over-current
Protection circuits Short circuit
Protection circuits soft start
Protection circuits thermal overload
Controls Gain
Controls ground lift
Controls limiter
Controls Mode
Controls On / Off
Controls volume
Indicators clip
Indicators Mode
Indicators Power
Indicators Protect (protection circuit engaged)
Indicators Signal
Line inputs 2
Line input connectors 6.3 mm jack
Line input connectors RCA
Loudspeaker outputs 2
Speaker output connections Speakon compatible
Speaker output connections Terminal posts
Power supply Switching power supply
Power consumption @ full load 240 W
Operating voltage 115 V AC / 230 V AC (switchable)
Width 482 mm
Height 44 mm
Depth 244 mm
Weight 3 kg
LD Systems
LDXS200
