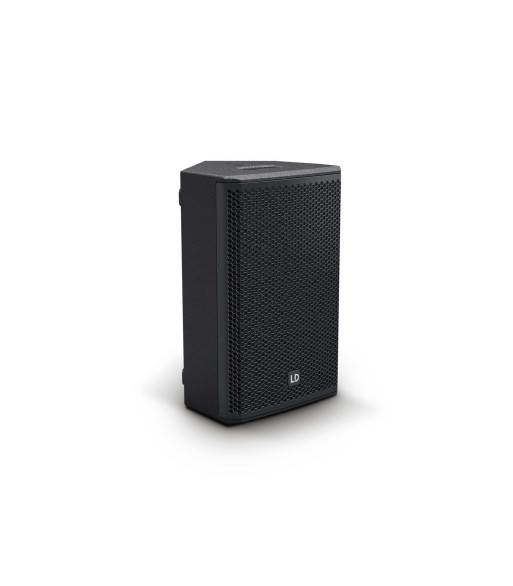

LD Systems Active 10" 2-way bass-reflex PA Loudspeaker

4.659,00 kr.
Inkl. moms
STINGER 10 A G3

This highly professional 2-way active system is designed for absolute, long-term reliability. With its multi-functional bass reflex housing and finely tuned, user-friendly presets, the speakers are suitable as full-range, box, satellite and floor monitors. The STINGER® 10 A G3 is powered by a highly efficient Class-D amplifier with a powerful 300-watt continuous output. The specially developed 10" woofer and a BMS tweeter driver achieve a powerful bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion. LD Systems_ proprietary DynX® DSP technology means that the STINGER® 10 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The STINGER® 10 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.

Antal
Klar til afsendelse fra fjernlager

  • Active 10" 2-way bass-reflex PA speaker
  • 127 dB max. SPL and 300-watt RMS performance with a highly-efficient digital amplifier
  • Perfect all-rounder for full-range, satellite and monitor applications
  • Practical presets for fast and user-specific frequency tuning
  • Homogeneous dispersion pattern thanks to a BEM-optimised tweeter wave guide
  • 10" custom woofer and BMS tweeter driver
  • Distortion-free sound at even maximum volumes, thanks to DynX® DSP technology
  • 2 line/mic input channels with individual gain controllers plus mono mix output
  • 12 mm birch plywood housing with ultra-robust polyurea coating and M10 rigging points
  • Shock-resistant front grille for optimal protection of the speaker.
  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle
  • Extensive and smart accessories for installation and transport

Product typePA loudspeaker
Typeactive
Low/mid Woofer dimensions10 "
Woofer dimensions (mm)254 mm
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil2 "
Woofer voice coil (mm)50.8 mm
HornBEM optimized CD Horn
HF driver dimensions1 "
HF driver dimention (mm)25.4 mm
HF driver magnetFerrite
HF driver brandBMS
HF driver voice coil1 "
HF driver voice coil25.4 mm
AmplifierClass D
Dispersion (H x V)90 x 50 °
System Power (RMS)300 W
Peak power600 W
Frequency response65 - 20000
Max. SPL (Peak)127 dB
Protection circuitsMultiband limiter
Protection circuitsover voltage
Protection circuitsover-current
Protection circuitsthermal overload
Input sensitivity-9 dBu
Controls2 x gain
Controls2 x Mic/Line
IndicatorsLimit
IndicatorsMic
IndicatorsMode
IndicatorsOn
IndicatorsProtect (protection circuit engaged)
IndicatorsSignal
Line inputs2
Line input connectors6.3 mm jack
Line input connectorsXLR
Line outputs1
Line output connectorsXLR
Power supply100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Power supplySwitching power supply
Operating Temperature0 - 40 °C
Relative Humidity< 80% (non-condensing)
Cabinet material12 mm Plywood
Cabinet surfacePolyurea
Cabinet constructionBass Reflex
Monitor angle54 °
Width325 mm
Height527 mm
Depth318 mm
Weight12,7 kg
LD Systems
LDEB102AG3
