LD Systems Portable Array System Power Set Including Distance Bars & Speaker Cables

16.129,00 kr.
Inkl. moms
CURV 500 PS

If more power is required, the patented CURV 500® Power Set can provide a power of 920 watts RMS and a maximum sound pressure of 134 dB. Two subwoofers and eight satellites offer all the advantages of the CURV 500® System and have sufficient power reserves for larger events or applications with high power requirements, especially in the bass range.

The compact, transport-friendly CURV 500® is an easily configurable array system with eight interlocking satellites, which are operated via a SmartLink® adapter. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead® technology, one 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.

The 10" bass-reflex subwoofer houses the Class D power amplifier and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo, and Speakon-compatible sockets offer extensive connectivity options, and the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles. The second subwoofer with its own power amplifier offers identical technical specifications, but does not require any mixer.

The CURV 500® Power Set includes two subwoofers, one with a mixer unit, eight satellites, two SmartLink® adapters, two extension tubes and matching speaker cables.

Antal
Klar til afsendelse fra fjernlager

  • The first truly portable array system
  • Fully scalable for far and near field applications
  • WaveAhead® technology for high definition audio
  • SmartLink® plug & play adapter for universal mounting options
  • Built-in 4 channel mixer with DFX and Bluetooth® technology
  • Durable lightweight aluminium unibody array elements
  • For mobile and fixed applications

Product typePA Complete Systems
System output (RMS)920 W
ColorBlack
Number of array satellites8
Number of Smartlink adapters2
Number of subwoofers2
Max. SPL (continuous)128 dB
Max. SPL (Peak)134 dB
Frequency response47 - 20000 Hz
Dispersion (H x V)110° horizontal, vertical (each satellite) 10 °
System Power (RMS)Subwoofer: 300 W , Array Satellites: 2 x 160 W, Subwoofer Extension 300 W
Peak powerSubwoofer: 1200 W , Array Satellites: 2 x 640, Subwoofer Extension: 1200 W
AmplifierClass D
Protection circuitsDSP-based multiband limiter
Weight59,1 kg
Accessories (included)2 x Distance bar
Accessories (included)2 x Power cable
Accessories (included)2 x Speaker cable CURV 500 CABLE 1 (2.2 m)
Accessories (included)5-pin XLR system cable (10 m)

Subwoofer

Low/mid Woofer dimensions10 "
Woofer dimensions (mm)254 mm
Cabinet constructionBass Reflex
Cabinet materialplywood
Cabinet surfacePA painting
Dimensions Subwoofer (W x H x D)325 x 383 x 491 mm
Subwoofer weight16.5 kg
Subwoofer features16 DFX Presets
Subwoofer features3 ergonomic handels
Subwoofer features4 channel mixer
Subwoofer features4 System DSP Presets
Subwoofer featuresBluetooth
Subwoofer featuresThreaded flange M20

Array Satellites

Mid/Hi systemMF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms
Array Satellite Featuresinternal crossover
Array Satellite Featuresmetal grille
Array Satellite FeaturesWaveAhead® Technology
Array Satellite MaterialDie-cast aluminium
Array Satellite Surface:Powder coated
Array Satellite Dimensions (W x H x D)122 x 122 x 122 mm
Array Satellite Weight1.7 kg

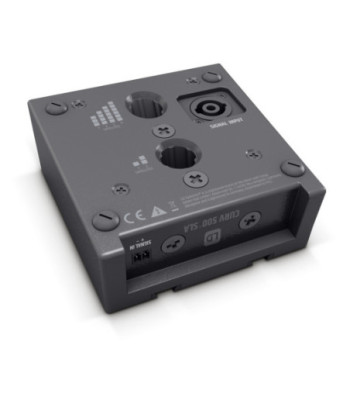

Smartlink® Adapter

Smartlink Adapter Features2 x 16 mm pole mount socket
Smartlink Adapter Features2x M6 thread for optional wall mount
Smartlink Adapter Connectors1 x Speakon-compatible
Smartlink Adapter Connectors1x Phoenix
Smartlink Adapter MaterialDie-cast aluminium
Smartlink Adapter SurfacePowder coated
Smartlink Adapter Dimensions (W x H x D)122 x 57 x 122 mm
Smartlink Adapter Weight0.6 kg
Phoenix Gold
LDCURV500PS
