LD Systems Portable Array System Entertainer Set Including Distance Bar & Speaker Cable

9.779,00 kr.
Inkl. moms

CURV 500 ES

The CURV 500® Entertainer Set consists of a high-performance 10" bass reflex subwoofer and an easily configurable array system with four satellites. Featuring a power of 460 watts RMS and a maximum sound pressure level of 128 dB, the CURV 500® ES Set is the ideal sound system for small events or conferences and meetings.

The compact, transport-friendly CURV 500® is an array system with 4 interlocking satellites, which are operated via a SmartLink® adapter. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead® technology. One 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.

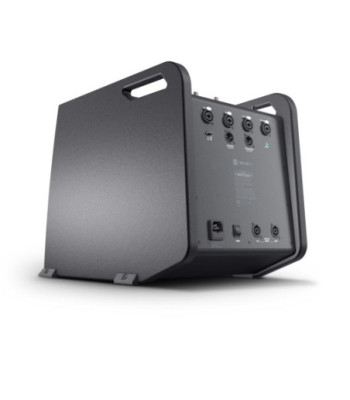

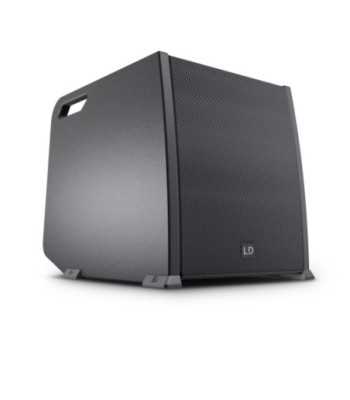

The 10" bass-reflex subwoofer houses the Class D power amplifier and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo, and Speakon- compatible sockets offer extensive connectivity options, and the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles.

The Entertainer Set can be operated in stereo mode with a total of eight array satellites (max. four on each side). This variant is particularly useful in voice applications, where bass playback is not in the foreground. Speakers or moderators especially appreciate the clarity, transparency and typical benefits of array systems. With the Power Extension set, the Entertainer Set can provide even more power at any time, especially in the bass range, thus expanding to a high-performance Power Set.

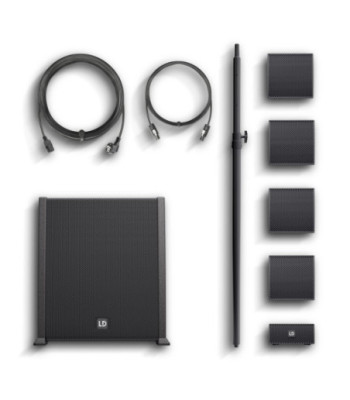

The CURV 500® Entertainer Set includes a subwoofer with a mixer unit, four satellites, SmartLink® adapters, distance bar and speaker cables.

Antal
Klar til afhentning // afsendelse fra eget lager

  • The first truly portable array system
  • Fully scalable for far and near field applications
  • WaveAhead® technology for high definition audio
  • SmartLink® plug & play adapter for universal mounting options
  • Built-in 4 channel mixer with DFX and Bluetooth® technology
  • Durable lightweight aluminium unibody array elements
  • For mobile and fixed applications

Product type PA Complete Systems
System output (RMS) 460 W
Color Black
Number of array satellites 4
Number of Smartlink adapters 1
Number of subwoofers 1
Max. SPL (continuous) 122 dB
Max. SPL (Peak) 128 dB
Frequency response 47 - 20000 Hz
Dispersion (H x V) 110° horizontal, vertical (each satellite) 10 °
System Power (RMS) Subwoofer: 300 W , Array Satellites: 2 x 160 W
Peak power Subwoofer: 1200 W , Array Satellites: 2 x 640 W
Amplifier Class D
Protection circuits DSP-based multiband limiter
Protection circuits overload
Protection circuits Short circuit
Protection circuits thermal overload
Weight 26,8 kg
Accessories (included) Distance bar
Accessories (included) Power cord
Accessories (included) Speaker cable CURV 500 CABLE 1 (2.2 m)

Subwoofer

Low/mid Woofer dimensions 10 "
Woofer dimensions (mm) 254 mm
Cabinet construction Bass Reflex
Cabinet material plywood
Cabinet surface PA painting
Dimensions Subwoofer (W x H x D) 325 x 383 x 491 mm
Subwoofer weight 16.5 kg
Subwoofer features 16 DFX Presets
Subwoofer features 3 ergonomic handels
Subwoofer features 4 channel mixer
Subwoofer features 4 System DSP Presets
Subwoofer features Bluetooth
Subwoofer features Threaded flange M20

Array Satellites

Mid/Hi system MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms
Array Satellite Features internal crossover
Array Satellite Features metal grille
Array Satellite Features WaveAhead® Technology
Array Satellite Material Die-cast aluminium
Array Satellite Surface: Powder coated
Array Satellite Dimensions (W x H x D) 122 x 122 x 122 mm
Array Satellite Weight 1.7 kg

Smartlink® Adapter

Smartlink Adapter Features 2 x 16 mm pole mount socket
Smartlink Adapter Features 2x M6 thread for optional wall mount
Smartlink Adapter Connectors 1 x Speakon-compatible
Smartlink Adapter Connectors 1x Phoenix
Smartlink Adapter Material Die-cast aluminium
Smartlink Adapter Surface Powder coated
Smartlink Adapter Dimensions (W x H x D) 122 x 57 x 122 mm
Smartlink Adapter Weight 0.6 kg
Phoenix Gold
LDCURV500ES
1 Enhed
