LD Systems Portable active PA system with 3-Channel mixer

4.589,00 kr.
Inkl. moms

DAVE 8 ROADIE

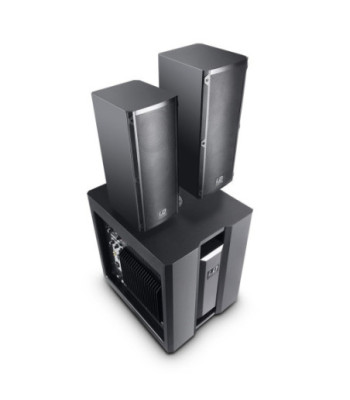

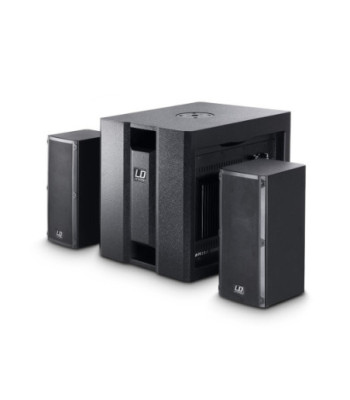

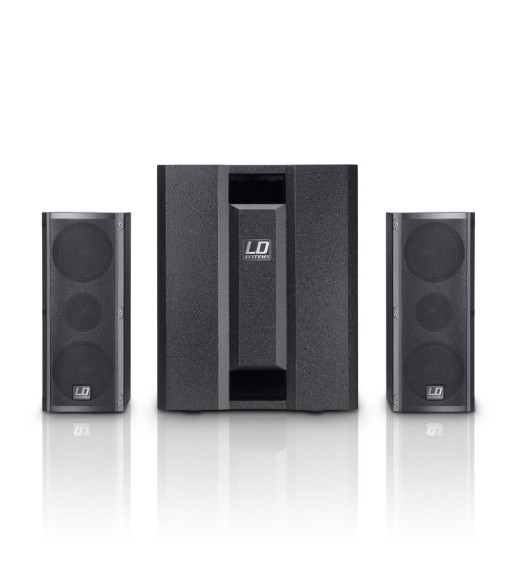

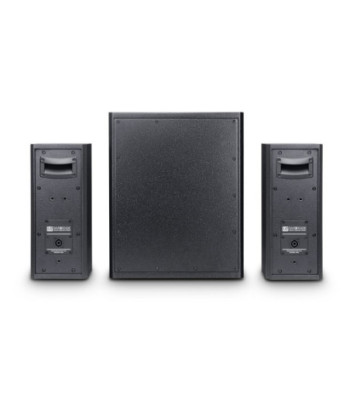

With the DAVE 8 Roadie, LD Systems are successfully implementing their motto "pro audio in motion". This complete PA system with its powerful 1400-watt (Peak) power amp delivers astounding performance for mobile applications. The system is equipped with a high-performance 8" band-pass subwoofer and two satellite speakers (2 x 4" + 1") and was designed as a flexible and portable mini PA system especially for musicians.

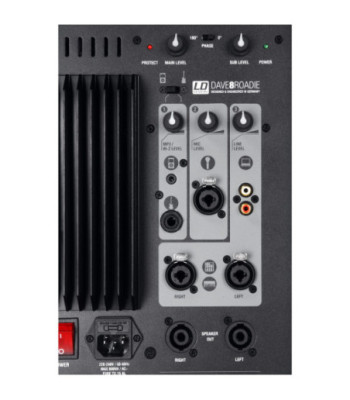

The DAVE 8 Roadie features three different inputs, which can be used simultaneously. One channel has a combo socket (XLR/jack) for dynamic microphones. One channel offers dual RCA connectors for computers as well as a combo socket (XLR/jack) for mixers or keyboards. Finally, the third channel has a 3.5 mm stereo and a 6.3 mm mono jack input for MP3 players or guitars with a switch for selecting the desired input. The high-performance Class A/B power amp module integrated in the subwoofer powers both the subwoofer and the satellites.

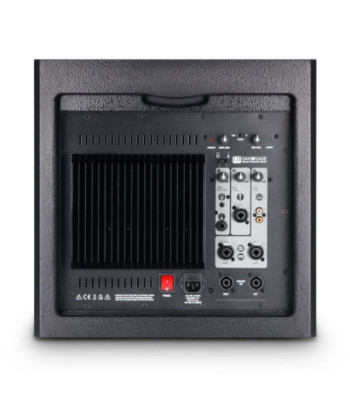

The systems features all of the usual protection circuits. The built-in limiter keeps the system safe from overload and ensures a long service life. On the side of the subwoofer, in addition to an ON/OFF switch and a phase reverse switch (180°), there is a separate subwoofer volume knob that allows you to find the perfect mix of brilliant treble, punchy mids, and powerful bass.

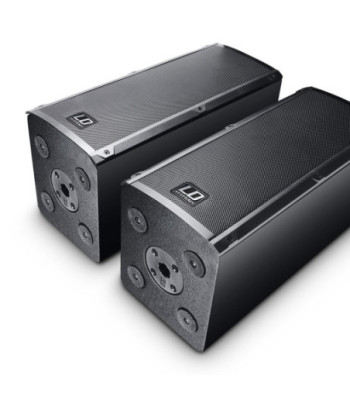

Sturdy front grilles and ergonomic handles on both the subwoofer and the satellites underscore the roadworthiness of the DAVE 8 Roadie and make the system an ideal companion for musicians.

Antal
Klar til afhentning // afsendelse fra eget lager

  • 2.1 Portable PA-System for Musicians, DJs, Gaming, Business Conferences
  • 3-channel mixer integrated
  • Connectivity for Microphone, Guitar, Keyboard, E-Drums, MP3 player, Laptop or PC, Mixer and more
  • 1400 W peak
  • For up to 70 people
  • 8" Bandpass subwoofer for punchy bass reproduction
  • Satellite speakers: 2 x 4" mid/high driver + 1" tweeter in a d'Appolito arrangement
  • D'Appolito arrangement provides coherent frequency dispersion
  • Integrated limiter: Protects the speakers from overload
  • Subwoofer volume control for perfect balance between bass and mid/high frequencies
  • Mobile: Compact design, sturdy front grilles, carrying handles

Weight 29,1 kg
Product type PA Complete Systems
Color Black
Max. SPL (continuous) 117 dB
Max. SPL (Peak) 123 dB
Frequency response 45 - 19000
Dispersion (H x V) 60 x 60 °

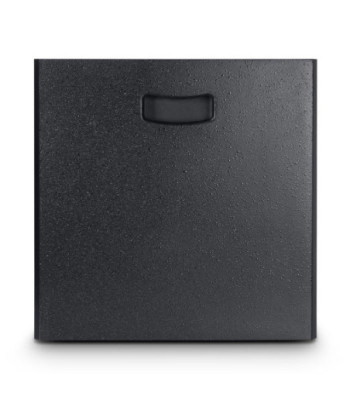

Subwoofer

Low/mid Woofer dimensions 8 "
Woofer dimensions (mm) 203 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer voice coil 1.5 "
Woofer voice coil (mm) 38.1 mm
Cabinet construction Bandpass
Cabinet material MDF
Cabinet surface painted
Subwoofer width 352 mm
Subwoofer height 430 mm
Subwoofer depth 434 mm
Subwoofer features limiter

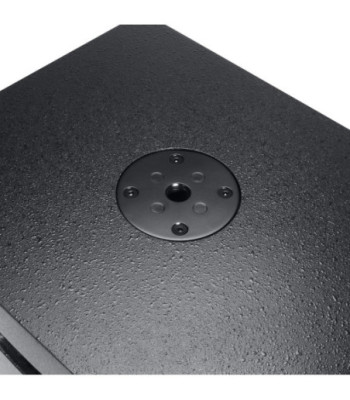

Subwoofer features threaded flange M20

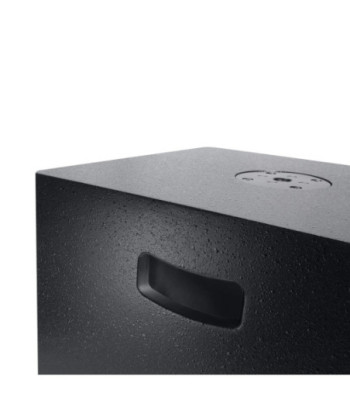

Subwoofer features transport handle

Mid/Hi System

Midrange dimensions 2 x 4 "
Midrange dimensions (mm) 2 x 101.6 mm
Midrange magnet Ferrite
Midrange brand Custom-made
Midrange voice coil 1 "
Midrange voice coil 25.4 mm
Horn radial
Tweeter dimensions 1 "
Tweeter dimensions (mm) 25.4 mm
Tweeter magnet Ferrite
Tweeter brand Custom-made
Tweeter voice coil 1 "
Tweeter voice coil (mm) 25.4 mm
Mid/Hi system impedance 4 Ohm(s)
Loudspeaker inputs 1
Speaker input connections Speakon compatible
Cabinet construction mid/high Closed
Mid/Hi system cabinet material MDF
Mid/Hi system cabinet surface painted
Mid/Hi system width 150 mm
Mid/Hi system height 350 mm
Mid/Hi system depth 170 mm
Mid/Hi system weight 4.2 kg
Mid/Hi system features 16 mm flange
Mid/Hi system features metall front grille
Mid/Hi system features transport handle

Amplifier module (integrated in subwoofer)

Amplifier Class A/B
Amplifier output system (RMS) 350 W
Amplifier output system (peak) 1400 W
Protection circuits limiter
Protection circuits over-current
Protection circuits Short circuit
Cooling heat sink
Controls input switch (MP3 / Hi-Z)
Controls Line level
Controls Main level
Controls Mic level
Controls MP3 / Hi-Z level
Controls On / Off
Controls Sub level
Controls Subwoofer Phase Reverse
Indicators Power
Indicators Protect (protection circuit engaged)
Operating voltage 220 V AC - 240 V AC
Line inputs 3
Line input connectors 6.3 mm jack
Line input connectors RCA
Line input connectors XLR
Mic inputs 1
Mic inputs 6.3 mm jack
Mic inputs XLR
MP3 inputs 1
MP3 input connectors 3.5 mm jack
Hi-Z inputs 1
Hi-Z input connectors 6.3 mm jack
Loudspeaker outputs 2
Speaker output connections Speakon compatible
LD Systems
LDDAVE8ROADIE
1 Enhed
