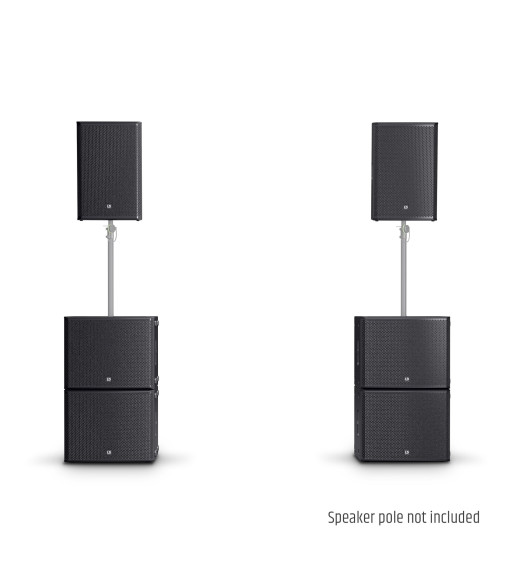

LD Systems 2 x 15" powered PA Speaker + 4 x 18" powered Subwoofer

61.829,00 kr.
Inkl. moms
STINGER G3 IMPACT SET A

Delivering a massive low-end with punch and clarity, this set is ideal for outdoor sound reinforcement. With a quartet of subwoofers and two 15_ tops, it easily covers medium-sized gigs at town fairs, street festivals and in marquees. We recommend this set for the following type of application: DJ, outdoor sound reinforcement for bands. The STINGER G3 IMPACT SET A is suitable for audiences of up to 400* pax. For optional stands and cables check out the "related products" section.

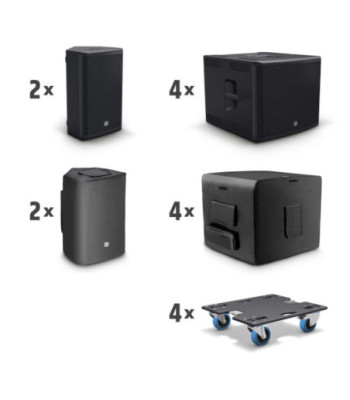

Set consisting of:

2 x STINGER 15 A G3 _ 15_ Powered loudspeaker

4 x STINGER SUB 18 A G3 _ 18_ Powered subwoofer

2 x STINGER 15 G3 PC _ Padded protective cover for loudspeaker

4 x STINGER SUB 18 G3 PC _ Padded protective cover for subwoofer

4 x STINGER SUB 18 G3 CB _ Castor board for subwoofer

*NOTE: Audience size specifications are approximate only. The actual numbers may vary depending on room acoustics and environment.

Antal
Klar til afsendelse fra fjernlager

  • For audiences up to 400* pax
  • For DJs, outdoor sound reinforcement for bands and large private use
  • Compact and easy to transport
  • Extensive and smart accessories for installation and transport
  • All-rounder for full-range, satellite and monitor applications
  • Practical presets for quick frequency response contouring
  • Highly efficient digital amplifier without fan
  • 36 mm Dual-Tilt pole mount for 0° and 5° tilt angle
  • Birch plywood housing with ultra-robust Polyurea coating
  • Cardioid subwoofer array presets
  • Set includes protective covers and castor boards

Product typePA Loudspeakers Accessories
Product typePA system
Product typePA Complete Systems Accessories
Product typePA Subwoofer Accessories
TypeCovers
ColorBlack
Typecastor boards
TypePowered
TypeCovers
Product typePA subwoofer
Product typePA loudspeaker
System output (RMS)3,400 W
Frequency response35 - 20,000 Hz
Typeactive
MaterialNylon 1680D
Typeactive
MaterialBirch multiplex
MaterialNylon 1680D
Thickness of the padding8 mm
Material thickness15 mm
Low/mid Woofer dimensions18 "
ColorBlack
Low/mid Woofer dimensions15 "
Dispersion (H x V)90 x 50°
Weight260 kg
Woofer dimensions (mm)381 mm
Thickness of the padding8 mm
Woofer dimensions (mm)457.2 mm
SurfacePolyurea
ColorBlack
Width567 mm
Height700 mm
Width510 mm
Woofer magnetFerrite
Woofer magnetFerrite
Height470 mm
Number of casters4
Wheel diameter100 mm
Depth625 mm
Woofer brandCustom-made
Woofer brandCustom-made
Depth460 mm
Weight0,998 kg
Woofer voice coil3 "
Woofer voice coil4 "
Weight1,5 kg
Manufacturer of castorsAdam Hall
Number of drag castors2
Woofer voice coil (mm)101.6 mm
Woofer voice coil (mm)76.2 mm
HornBEM optimized CD Horn
AmplifierClass D
Width540 mm
Length650 mm
System Power (RMS)800 W
HF driver dimensions1 "
HF driver dimention (mm)25.4 mm
Peak power1600 W
Frequency response35 - Low-Pass
HF driver magnetFerrite
HF driver brandBMS
Weight7 kg
HF driver voice coil1 "
HF driver voice coil25.4 mm
Max. SPL (Peak)135 dB
Protection circuitsDC
Protection circuitslimiter
Protection circuitsover voltage
Protection circuitsShort circuit
AmplifierClass D
Dispersion (H x V)90 x 50 °
Input impedance30000 Ohm(s)
Input sensitivity0.3 V
System Power (RMS)500 W
Peak power1000 W
ControlsMain level
ControlsMode
IndicatorsLimit
IndicatorsMode
IndicatorsOn
IndicatorsProtect (protection circuit engaged)
IndicatorsSignal
Frequency response50 - 20000
Line inputs2
Line input connectors6.3 mm jack
Line input connectorsXLR
Line outputs2
Line output connectorsXLR
Max. SPL (Peak)133 dB
Protection circuitsMultiband limiter
Protection circuitsover voltage
Protection circuitsover-current
Protection circuitsthermal overload
Power supplySMPS
Power supply100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Power consumption (max.)600 W
Operating Temperature0 - 40 °C
Relative Humidity< 80% (non-condensing)
Cabinet material18 mm Plywood
Cabinet surfacePolyurea
Input sensitivity-5 dBu
Cabinet constructionBass Reflex
Width677 mm
Controls2 x gain
Controls2 x Mic/Line
ControlsMode
Height547 mm
Depth740 mm
Weight42,6 kg
IndicatorsLimit
IndicatorsMic
IndicatorsMode
IndicatorsOn
IndicatorsProtect (protection circuit engaged)
IndicatorsSignal
Line inputs2
Line input connectors6.3 mm jack
Line input connectorsXLR
Line outputs1
Line output connectorsXLR
Power supply100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Power supplySwitching power supply
Operating Temperature0 - 40 °C
Relative Humidity< 80% (non-condensing)
Cabinet material15 mm Plywood
Cabinet surfacePolyurea
Cabinet constructionBass Reflex
Monitor angle54 °
Width480 mm
Height737 mm
Depth455 mm
Weight26,8 kg
