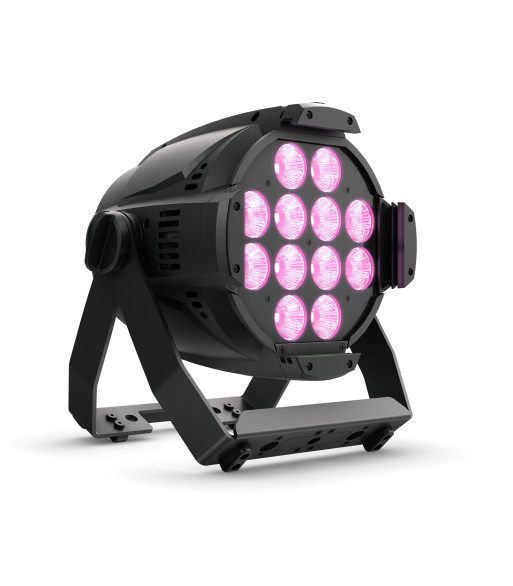

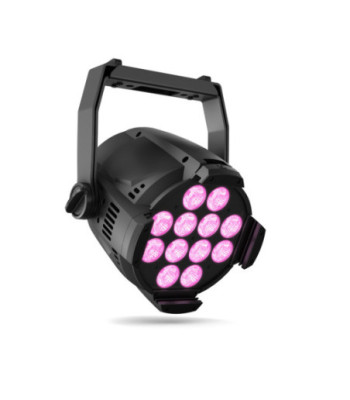

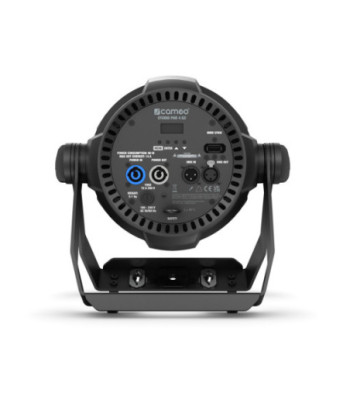

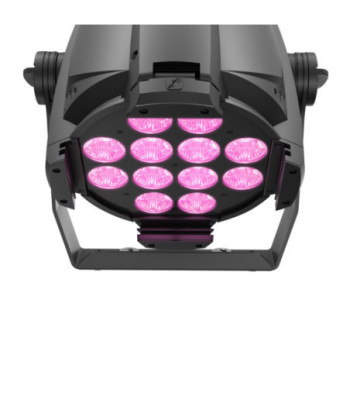

Cameo LED PAR Spotlight with 12 x RGBW 4-in-1 LED

3.539,00 kr.
Inkl. moms
STUDIO PAR 4 G2

They can be found at almost every event - large or small, on live stages or corporate events, in the theatre or TV studio. LED PAR spotlights are permanent fixtures in the portfolio of every lighting designer and rental provider - and they have to meet the highest demands in terms of lighting quality, operation and flexible use.

With the second generation of the STUDIO PAR series, Cameo has revised the genre of classic LED PAR fixtures for static lighting on all levels and given the design an unmistakable facelift.

The extremely compact STUDIO PAR 4 G2 is based on 12 x 8 W 4-in-1 RGBW LEDs with an impressive luminous flux of 4,100 lm at a 16° beam angle and uniform light distribution. Thanks to the adjustable PWM frequency in the range from 650 Hz to 25 kHz, the STUDIO PAR 4 G2 is also suitable for flicker-free operation in theatres, TV studios, on film sets or at indoor light art festivals. Even more versatile is the use in combination with the optionally available Cameo iDMX Stick to control the STUDIO PAR 4 G2 wirelessly via W-DMX_.

For particularly flexible mounting, the STUDIO PAR 4 G2 can be optionally retrofitted with a fold-out 16 mm TV spigot based on patented SPIN16® technology.

Antal
Klar til afsendelse fra fjernlager

  • 12 x 8 W 4-in-1 RGBW LED with 4,700 lm luminous flux
  • Revised design with many workflow optimisations
  • Selectable pulse width modulation (up to 25 kHz) for flicker-free operation
  • Virtually silent operation in "Silent Fan Mode"
  • Intuitive holding mechanism for colour filter frames
  • Wireless control via W-DMX_ via optional Cameo iDMX Stick
  • Simple configuration via OLED display
  • PowerCON compatible power connector
  • Fold-out 16 mm TV spigot (SPIN16®) can be retrofitted as an option

Product typeLED PAR Lighting
TypeStudio PAR
Colour spectrumRGBW
Number of LEDs12
LED type4in1 RGBW 8 W SMD LED
Luminous flux4700 lm
DispersionBeam Angle: 19 °
DispersionField Angle: 27 °
Lens12 x acrylic lens
LED PWM Frequency650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz, 25000 Hz
Dimmer resolution16 bit
Dimmer curvesExponential
Dimmer curvesLinear
Dimmer curvesLogarithmic
Dimmer curvesSquare
Strobe0 - 20 Hz
CRI>72 Ra
DMX input3-Pol
DMX inputiDMX slot
DMX output3-Pol
DMX mode10-channel
DMX mode14-channel
DMX mode1-channel
DMX mode3-channel
DMX mode4-channel
DMX mode6-channel
DMX mode8-channel
DMX Functionscolour macro
DMX FunctionsDevice Settings
DMX FunctionsDimmer
DMX FunctionsDimmer Curve
DMX FunctionsEZ-Chase
DMX FunctionsRGBW
DMX FunctionsStrobe
Standalone modesAuto Mode
Standalone modesStatic
System settingsCalibration
System settingsDefault settings
System settingsDimmer
System settingsDimmer Response
System settingsDisplay
System settingsFan mode
System settingsLED PWM Frequency
System settingsSignal Fail
System settingsWireless
Controls4 x Buttons
ControlsDown
ControlsEnter
Controlsmenu
ControlsUp
IndicatorsOLED Display
Relative Humidity< 80 %, not condensing
Protection class IPIP20
Ambient temperature (operating)-10 - 40 °C
CoolingConvection
Coolinglow-noise fan
Operating voltage100 V AC - 240 V AC, 50 - 60 Hz
Power connectorPowerCon Blue I/O
FuseT2A
Max. Power consumption90 W
HousingDie-cast aluminium
Cabinet surfacePowder coated
Cabinet colourBlack
Height360 mm
Width310 mm
Depth250 mm
Weight5,1 kg
Cameo
CLPST4G2
