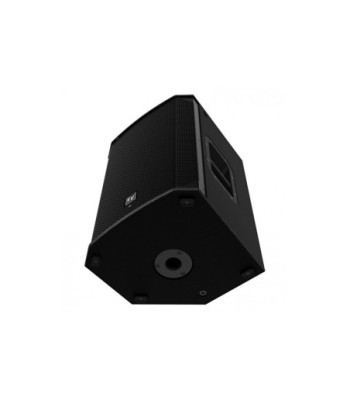

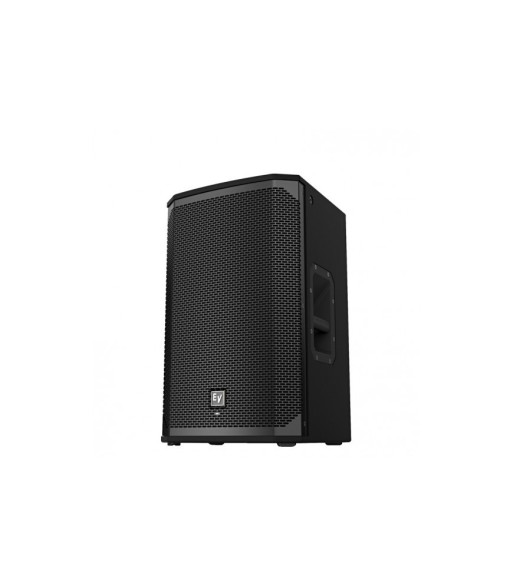

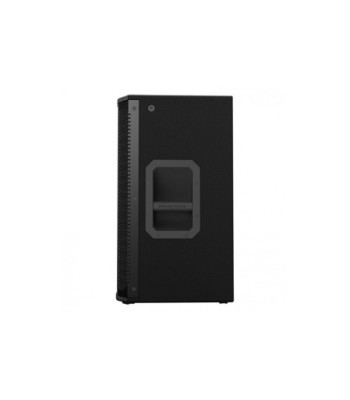

Electro-Voice EKX12 Passiv 12" Højttaler

4.520,00 kr.
Inkl. moms

Specifikationer

  • Max SPL : 131
  • Frekvensområde : 55 Hz - 20 kHz
  • Watt RMS : 350
  • Materiale : Træ
  • Enhed størrelse : 12"
  • Passiv : Ja
  • Ohm : 8 ohm
  • Watt PEAK : 1400
  • Farve : Sort
Antal
Klar til afsendelse fra fjernlager

EKX-12

12" PASSIVE LOUDSPEAKER

  • EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
  • EV-patented Signal Synchronized Transducers_ (SST) waveguide design provides precise and consistent coverage.
  • Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
  • Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
  • 90° x 60° pattern for best coverage on mid-size stages. 40° monitor angle with rubber feet.
  • Axial Sensitivity (SPL, 1 W @ 1 m) 95dB
    Connector Type Dual NL4
    Coverage (Nominal -6 dB) H 90°
    Crossover Frequency 1.6 kHz
    Enclosure Material 15 mm, plywood with EVCoat
    Family EKX
    Frequency Response (-3 dB) 82 Hz - 18 kkHz (Full Space Measurement)
    Grille 18 AWG steel with powdercoat
    HF Transducer DH-1M 1-inch titanium compression driver
    LF Transducer EVS-12M 300 mm (12 in)
    Max. SPL/1m (calc) 131dB
    Maximum SPL 131dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
    Minimum Impedance 7.5_
    Nominal Impedance 8_
    Passive Power Handling 1400W peak
    Power Handling (Continuous / Peak) 350 W/1400W
    Power Rating 1400W
    Powered or Passive Passive
    Recommended High-Pass Frequency 55Hz
    Shipping Weight 21.4kg (47.18 lbs)
    Speaker Type Full-Range, two-way
    Suspension (8) M10 threaded mounting points
    Woofer Size 12inch
Electro Voice
EKX12

Produktinformation

Farve
Sort
Følsomhed (Sensitivity) dB
95 dB
Impedans Ω (ohm)
8 Ω
Maksimal Effekt (peak)
1400 W
Laveste Frekvens
55 Hz
Højeste Frekvens
20.000 Hz
Højttaler: Type
Passiv
Højttaler: Lokation
Indendørs
Højttaler: Lokation
Gulv
Højttaler: Enhedsopsætning
2-vejs
Højttaler: Basshøjttalerens størrelse
12"
