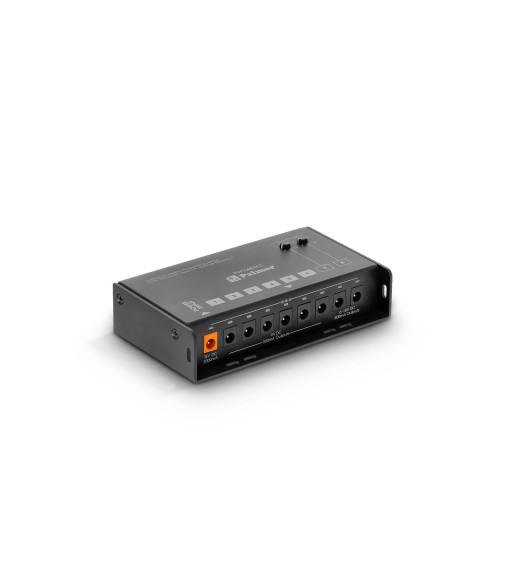

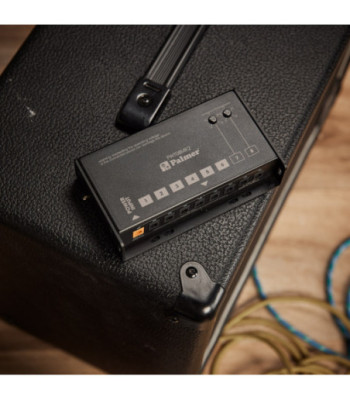

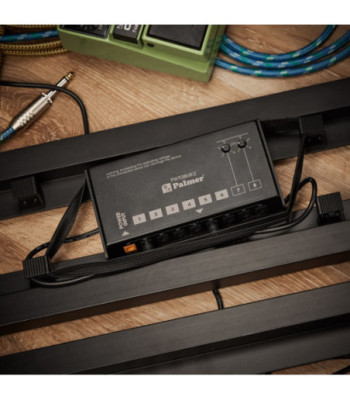

Palmer Universal 8-Outlet Pedalboard Power Supply

1.089,00 kr.
Inkl. moms
PWT 08 MK2No unwanted noise, plenty of output for power-hungry pedals, and slim design

The PWT 08 MK2 power supply stands out with its slim design, which easily fits under almost any pedal boards. The total capacity of 2,000 mA is distributed over eight individually isolated 9V DC outputs.

Two of the outputs are adjustable between 6 and 18 volts to simulate the voltage drop of old batteries, or to feed effects pedals with higher voltage requirements. In addition, these two individually isolated outputs provide 500 mA each, making them ideal for digital effects pedals with high current requirements. The other six individually isolated outputs provide 300 mA each.

The PWT 08 MK2 power supply is regulated for a stable voltage supply, and is protected against short circuit and overvoltage issues. The PWT 08 MK2 pedalboard power supply is also equipped with a power LED on the input socket, and a two-colour LED on all outputs to indicate output status.

It comes with the appropriate US/UK/EU power adapter and a complete set of DC cables.

The PWT 08 MK2 is the ideal solution for a low-noise pedalboard that features power-hungry effects pedals.

Antal
Klar til afsendelse fra fjernlager

  • Fully regulated universal power supply for guitar effects
  • Six single isolated centre negative 9V DC outlets (300 mA each)
  • Two single isolated variable voltage outlets: 6-18V DC (500 mA each)
  • Total output capacity: 2,000 mA
  • Short-circuit and overload protection for each individual outlet
  • DC cables and mains adapter for EU, UK and US included

Product typePower Supplies
single isolated DC outputs8
Output 1-69 V (300 mA max)
Output 7-86 V - 18 V (500 mA max)
Output connectors2.1 x 5.5 mm
Output voltage6 V - 18 V
Individually isolated outputsYes
PolarityCenter negative
IndicatorsPower, status LED (green: output OK / red: error)
ControlsOutput voltage regulator
Depth80 mm
Width140 mm
Height32 mm
Weight0,293 kg
AccessoriesPlug-in power supply PW18VDCUNI (EU/UK/US), 8x DC cable (60cm), 4x rubber feet
Noise< 40 µV (Output 1 - 8)
Ambient temperature (in operation)0°C - 40 °C
Relative Humidity< 80 % ( non-condensing )
Palmer
PWT08MK2
