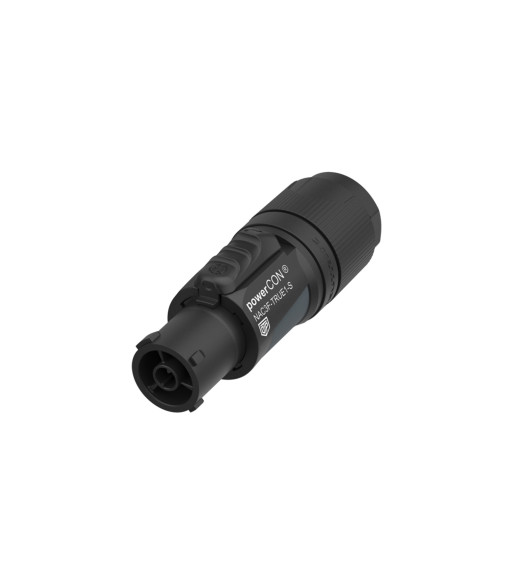

Neutrik Neutrik powerCON TRUE1® connector female small - IP67

88,00 kr.
Inkl. moms

The powerCON TRUE1® is a locking true mains connector for harsh and demanding applications. It replaces the appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Antal
Klar til afsendelse fra fjernlager

  • The original TRUE1® connector
  • Heavy duty sealed power connector for a harsh and demanding environment
  • Lockable single phase connector
  • ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
  • IP65 and IP67 (mated or with closed cap)
  • Easy and reliable twist lock system
  • Uses high impact UV-resistant materials
  • Extremely robust and reliable
  • UL and CSA certified according to UL 60320-1 and CSA 22.2 No. 60320-1
  • True mains connector with breaking capacity (CBC)
  • Unique Neutrik® locking bushing and strain relief for cable diameters from 6 mm to 12 mm

General

Plug typeMains plug device outdoor female & TRUE1®

Housing

Chassis materialPolyamide
Grommet materialPolyamide
Suitable cable diameter6 - 12 mm
Suitable cable cross section1.5 - 2.5 mm²

Environmental

Protection classIP67
Inflammability (UL 94)V-0

Dimensions & weight

Length82.5 mm
Diameter26.8 mm
NEUTRIK
NAC3FTRUE1S

Produktinformation

Farve
Sort
Kabel: Stik - start
Strøm: PowerCon True1 230V / 16A - Hun
Kabel: Stik - slut
Løse ender
Kabel: Stik - Adapter
Plastik adaptor
