LD Systems 19" 2-Zone Mixer 2U

3.129,00 kr.
Inkl. moms
ZONE 423LD Systems zone 423 2-Zone-Mixer

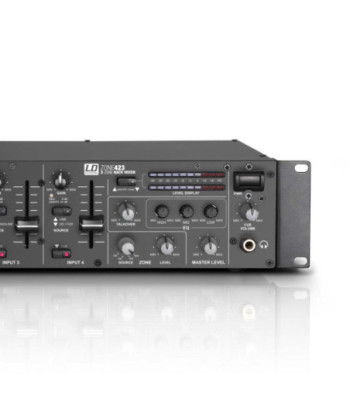

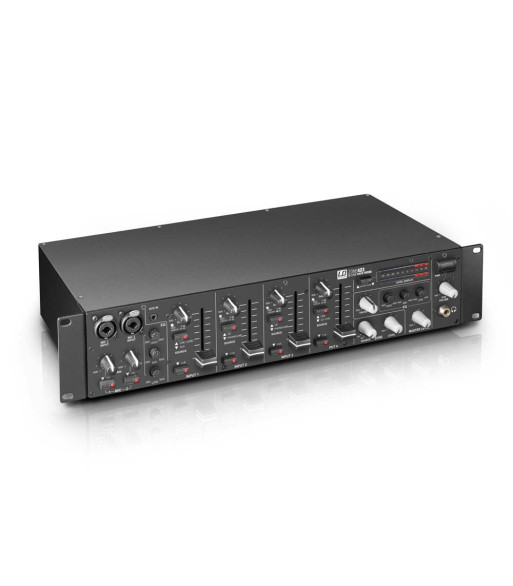

The ZONE 423 is a full featured zone mixer with 4 line and 2 microphone channels, that can be assigned to a master and a zone output, as well as inputs for an external emergency announcement system and remote-controlled switching mute. Through versatile connectivity, the compact 2U rack device is the perfect control centre for PA systems in food outlets, clubs, hotels, fitness centres, and is also excellent for presentations and DJs.

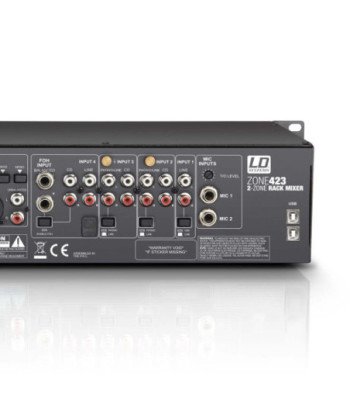

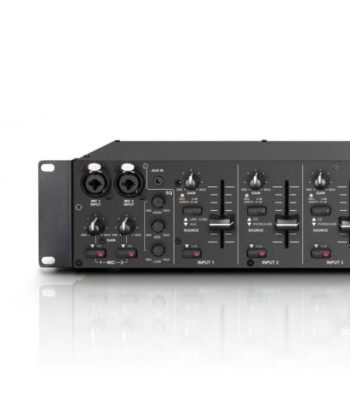

In addition to the two balanced microphone inputs with variable Gain and Talkover level,12V-phantom power, and a shared 3-Band-EQ, the ZONE 423 offers Line, Phono-, and Aux-stereo connections in RCA format, a FOH-input with balanced stereo jack plugs as well as a USB and 3.5mm mini jack. The USB-port is used as a stereo input and output and allows the mixer to be used as an external audio interface. The four input channels have individual gain controls with signal and peak value display, 45 mm faders for adjusting the volume and cue buttons.

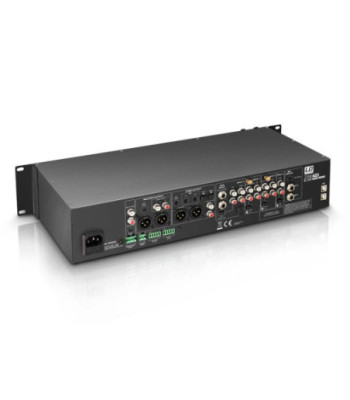

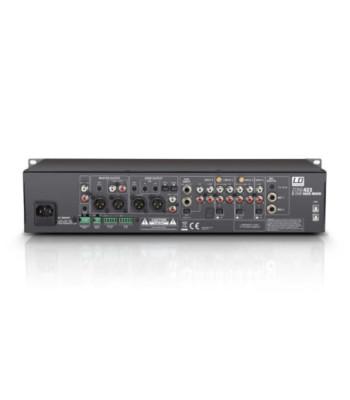

The master and zone sections each have their own EQ, balanced XLR and unbalanced RCA outputs: the master output via terminal block connectors and the zone output using a mono sum switch, and 100 Hz high-pass filter. The stereo level indication can be set to master or zone, and the maximum output level can be preset for both on the back of the mixer. In addition to an adjustable headphone connection for pre-listening, the ZONE 423 also has a recording output.

Antal
Klar til afhentning // afsendelse fra eget lager

Product typeMixers
TypeInstallations
Number of Zones2 (Master, Zone)
Typestereo
Installation Height2 U
Total Input Channels6 (2x Mic, 1x Line/Aux, 2x Line/Phono, 1x Line/FOH)
Frequency response20 - 40000
Microphone channels2 (with phantom power 12 V)
Microphone Channel Connections6.3 mm stereo jack (balanced)
Microphone Channel ConnectionsXLR
Microphone channel controls1 x EQ Hi
Microphone channel controls1 x EQ Low
Microphone channel controls1 x Talkover
Microphone channel controls1 x Talkover Level
Microphone channel controlsGain
Microphone channel controlsOn / Off
Microphone Channels Display ElementsOn-LED
Microphone Channels Input Impedance4 kOhm
Microphone Channels Input Sensitivity8 mV
Microphone Channels THD0.07%
Line Channels4 (Input 1: USB/Line, Input 2 + 3: Line/Phono/CD, Input 4: Line/FOH)
Line input connectors input 4: 4 x RCA + 2 x 6.3 mm jack
Line input connectorsInput 1: 2 x RCA + 3.5 mm stereo jack + USB
Line input connectorsinput 2 + 3: 4 x RCA
Line Channel ControlsCue
Line Channel ControlsEnable FOH
Line Channel ControlsGain
Line Channel Controlslevel
Line Channel ControlsSource
Line Channel Display ElementsCue-LED
Line Channel Display ElementsSignal/0 dB-LED
Line Channel Input Impedance(Phono) 60 kOhm
Line Channel Input Impedance6 kOhm
Line Channels Input Sensitivity(Phono) 10m V
Line Channels Input Sensitivity1 V
Line Channels THD(Phono) 0.05%
Line Channels THD0.03%
input sensitivity AUX/Line3 V
Line outputs3 (Master - Stereo, Zone - Stereo/Mono, Rec - Stereo)
Output Connectors Master 2 x XLR (balanced)
Output Connectors MasterRCA (x2)
Output Connectors MasterTerminal block
Master ControlsEQ Hi
Master ControlsEQ Low
Master ControlsEQ Mid
Master Controlslevel
Master ControlsMax. Level
Master Display Elements2 x 10 segment level meter (switchable Master/Zone)
Master Output Levels(unbalanced) 18 dBu
Master Output Levels(balanced) 21 dBu
Zone Output Connections 2 x XLR (balanced)
Zone Output ConnectionsRCA (x2)
Zone Output ConnectionsTerminal block
Zone Controls100 Hz High Pass
Zone ControlsEQ Hi
Zone ControlsEQ Low
Zone Controlslevel
Zone ControlsMax. Level
Zone Controlsmono
Zone ControlsSource Input 2 - 4/Mix
Zone Display Elements2 x 10 segment level meter (switchable Master/Zone)
Zone Output Levels(balanced) 21 dBu
Zone Output Levels(unbalanced) 18 dBu
Output Connections Rec2 x RCA
Headphones ouput1
Headphone Out Port6.3 mm TRS
Headphone Output ControlsCue Volume
Headphone Output Voltage(@ 32 Ohm) 1.2 V
Additional Inputs2 (Emergency Input, Output Mute)
Connections Additional InputsTerminal block
Additional Input ControlsLevel Emergency Input
Input Sensitivity Emergency Input5 V
Additional Controlspower switch
Additional Display Elementspower LED
Operating voltage220 - 250 V AC, 50 Hz
Mains connectorIEC power connector
Power consumption22 W
FuseT 500 mAL / 250 V
Width483 mm
Height89 mm
Depth210 mm
Weight3,3 kg
Accessories (included)Power cord
Accessories (included)terminal blocks
LD Systems
LDZONE423
1 Enhed
