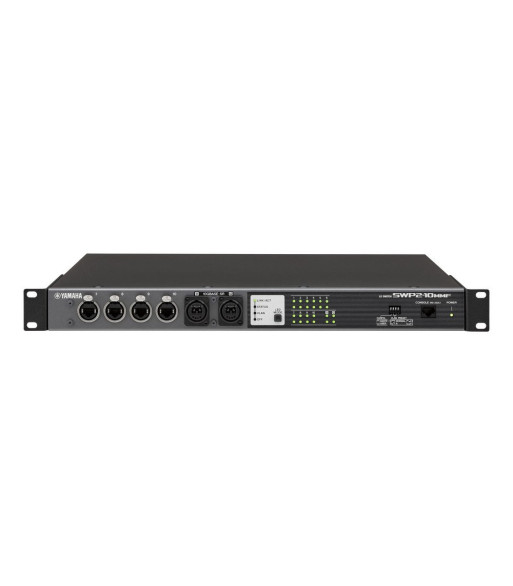

Yamaha SWP2-10MMF SWP2 Series Network Switch
search
  • Yamaha SWP2-10MMF SWP2 Series Network Switch

YAMAHA Ideal for Dante 96kHz network systems. It features 10 etherCON ports - SWP2-10MMF

28.969,00 kr.
23.464,89 kr. Spar 19%
Inkl. moms
Antal
Klar til afsendelse fra fjernlager

General specifications
Number of LAN ports (1000BASE-T/100BASE-TX/10BASE-T, etherCON connector) 10
Number of SFP+ ports (10GBASE-SR, opticalCON DUO connector) 2
Number of SFP+ ports (10GBASE-LR, opticalCON DUO connector) 0
Console port 1 (RJ-45)
Automatic negotiation Available
Auto MDI/MDI-X Available
DIP switches CONFIG, VLAN PRESET
Indicators Front: POWER, LED MODE×4, PORT×10×2*, SFP+ ×2×2
Operating temperature 0 to 40°C
Storage temperature -20 to 60°C
Power supply (AC IN inlet) AC100V-240V, 50/60Hz, Internal power supply (no power switch), Power supply inlet: locking type
Power supply (EXT DC INPUT inlet) 24VDC±2V, 0.78A, XLR-4-32 type Connector
Maximum power consumption 21W, 0.35A
Heat dissipation 18.5 kcal/h
Body material Metal case, no fan
Hazardous substances management RoHS compliant
Dimensions
W 480 mm
H 44 mm
D 362 mm
Weight 4.5kg
Accessories Power code, Owner's manual
Options PA-700 (AC adaptor)
* The LED MODE button allows the PORT indicators to be switched between indicating LINK/ACT-SPEED, STATUS, or VLAN.
Yamaha
CSWP210MMF
