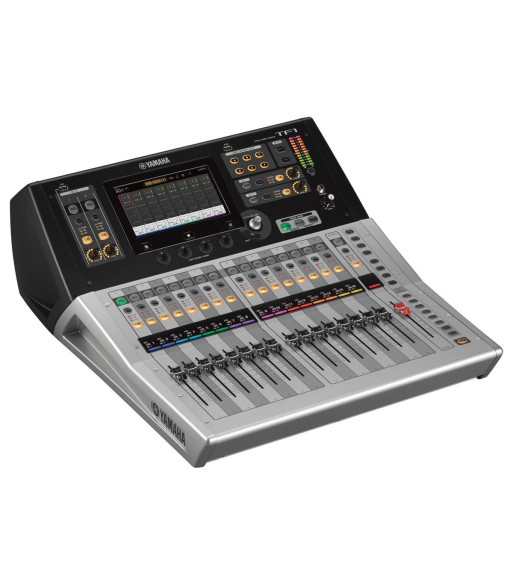

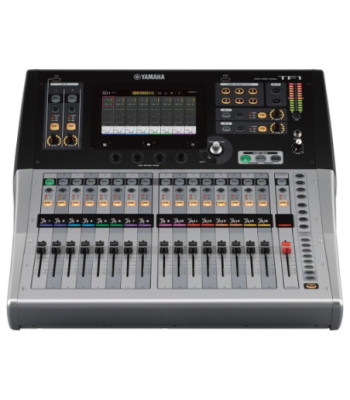

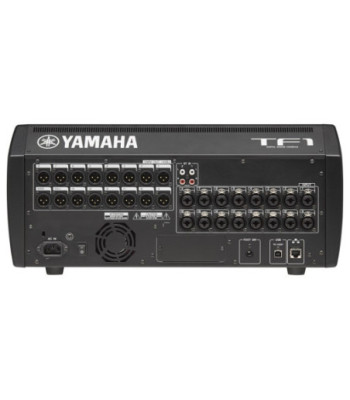

YAMAHA Digital mixer, 32 + 2 St & 2 Return, 20 AUX. - TF1

32.259,00 kr.
Inkl. moms
  • 17 motorised faders (16 channel faders + 1 master)
  • 40 mix input channels (32 mono + 2 stereo + 2 return)
  • 20 Aux busses (8 mono + 6 stereo) + Stereo + Sub
  • 8 DCA groups with roll-out
  • 16 analog XLR/TRS combo mic/line inputs + 2 analog stereo phono inputs
  • 16 analog XLR outputs
  • 34 x 34 channel digital input/playback via USB 2.0 + 2 x 2 via USB stick
  • 1 expansion slot for NY64-D audio interface card
Antal
Klar til afsendelse fra fjernlager

Specs

Outline

Fader Configuration 16 + 1 (Master) Mixing CapacityInput Channels 40 (32 mono + 2 stereo + 2 return) Aux Buses 20 (8 mono + 6 stereo) Stereo Buses 1 Sub Buses 1 Input channel functions 8 DCA Groups I/OInputs 16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) Outputs 16 (XLR) Expansion slots 1 On-board processorsDSP 8 Effects + 10 GEQ

General specifications

Sampling frequency rateInternal 48 kHz Signal delay Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz Fader 100 mm motorized, Resolution = 10-bit, +10 dB to _138 dB, __ dB all faders Total harmonic distortion Less than 0.05% 20 Hz_20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a _18 dB/octave filter@80 kHz) Frequency response +0.5, _1.5 dB 20 Hz_20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT Dynamic range 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. Hum & noise levelEquivalent input noise _128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) Residual output noise _85 dBu, ST master off (Measured with an A-Weight filter) Crosstalk _100 dB (Measured with a _30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min. Power requirements 100_240 V 50/60 Hz Power consumption 100 W DimensionsW 510 mm (20.1in) H 225 mm (8.9in) D 599 mm (23.6in) Net weight 13.5 kg (29.8lb) Accessories Quick Guide, Power Cord, Nuendo Live Options Rack-mount Kit RK5014, Expansion Card, Foot Switch (FC5) Others Operating temperature range: 0_40 °C, Storage temperature range: -20_60 °C

Recording/ Playback

PC/Mac (USB2.0) Recording 34 tracks, Playback 34 tracks
USB Storage Device Recording 2 tracks (USB hard drive/ SSD)*, Playback 2 tracks (USB hard drive/ SSD/ thumb drive)

Analog input characteristics

Input TerminalsGAINLoad
Impedance		For Use With
Nominal		Input LevelConnectorbalanced /
Unbalanced
Sensitivity*1NominalMax. before clip
INPUT1-16 +66dB 7.5K_ 50-600_ Mics
or 600_ Lines		 -82dBu (61.6V) -62dBu (0.616mV) -42dBu (6.16mV) Combo Jack (XLR-3-31 type *2
or TRS phone *3)		 Balanced
-6dB -10dBu (245mV) +10dBu (2.45V) +30dBu (24.5V)
ST IN 1,2 _ 10k_ 600_ Lines -30dBV (31.6V) -10dBV (316mV) +10dBV (3.16V) RCA Pin Jack Unbalanced

*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*In these specifications, 0dBu = 0.775Vrms.
*+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.

Analog output characteristics

Output TerminalsSource
Impedance		For Use With
Nominal		GAIN SWOutput LevelConnectorbalanced /
Unbalanced
NominalMax. before clip
OMNI OUT 1-16 75_ 600_ Lines _+24dBu_ position (default)
 		 +4dBu (1.23 V) +24dBu (12.3 V) XLR-3-32 type *1 Balanced
PHONES *3 100_ 40_ Phones _ 3mW 75mW Stereo Phone Jack (TRS) *2 Unbalanced

*1.1: GND,2: HOT, 3: COLD
*2 Tip: LEFT, Ring: RIGHT, Sleeve: GND
*3 The position of the level control is lowered by 16dB from the maximum.
*In these specifications, 0dBu = 0.775Vrms.
*All output DA converters are 24bit, 128times oversampling.

Digital input/output specifications

TerminalsFormatData lengthAudioConnector
USB (TO HOST) USB 24bit 34ch input / 34ch output, PCM USB (B type)
iPad USB _ Playback: MP3 or WAV file data / Record: WAV file data USB (A type)



Control I/O specifications

TerminalsFormatLevelConnector
NETWORK IEEE802.3 10BASE-T/100Base-TX RJ-45
FOOT SW _ _ TS Phone
