Yamaha DZR 315-D
search
  • Yamaha DZR 315-D
  • Yamaha DZR 315-D

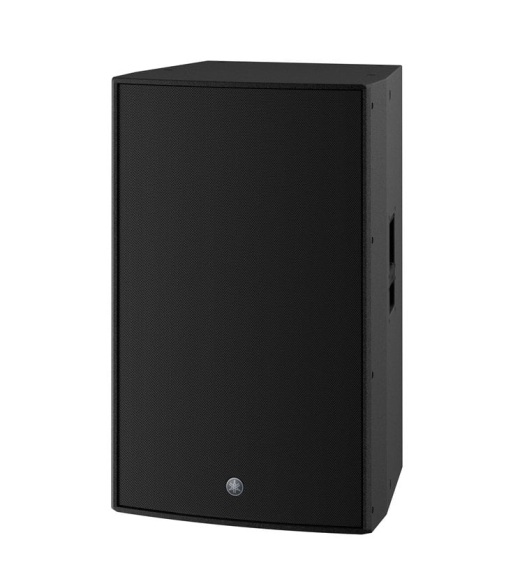

YAMAHA 3-way powered loudspeaker with a 2_ HF, an 8 _ MF and a 15" LF. Dante version. - CDZR315D

23.809,00 kr.
Inkl. moms
  • 3-way powered loudspeaker with a 2_ HF, an 8 _ MF and a 15_ LF
  • Maximum 143dB SPL and 31Hz-20kHz frequency range
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound
  • Features Advanced FIR-X tuning
  • Equipped with Dante I/O (2in/2out)
Antal
Klar til afsendelse fra fjernlager

General specifications
Speaker type 3-way, Bi-ampled Powered Speaker, Bass-reflex
Frequency range (-10dB) 31Hz _ 20kHz
Coverage area H75_ x V50_
Components LF 15_ Cone, 3_ Voice Coil, Neodymium magnet
MF 8_ Cone, 1.5_ Voice Coil, Ferrite magnet
HF 2_ Voice Coil, 1_ Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover 700Hz (FIR-X), 2.5kHz (Passive)
Sampling frequency rate Internal 96kHz and FIR Filter
A/D D/A Converters 96kHz AD/DA
Maximum output level (1m; on axis) 143dB SPL *1
SRC Yes
Power rating Dynamic 2000W (LF:1000W, MF/HF: 1000W) *2
Continuous 1300W (LF: 920W, MF/HF: 380W)

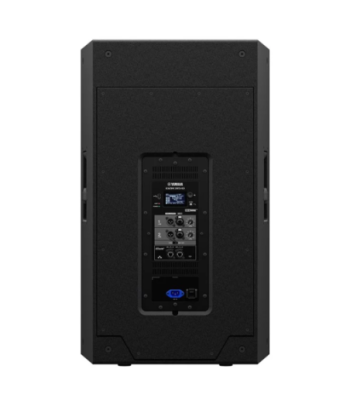

I/O Connectors Analog I/O Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k_, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
Digital I/O Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
Others USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC IEC AC inlet x1 (V-Lock)
Amplifier class Class-D
Cooling Fan cooling, Variable speeds
Power consumption 45W (Idle), 150W (1/8)
Handle Aluminium die-cast, Side x2
Rigging M10 x16
Dimensions W 550 mm (21.6_)
H 897 mm (35.3_) (with rubber feet)
D 520 mm (20.5_)
Net weight 41.6kg (91.7lbs)
Options Cover: SPCVR-DZR315
Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle _
Pole socket _
Yamaha
CDZR315D
