JEM ZR45 2000 watt full-sized professional fog machine

15.950,00 kr.
Inkl. moms

Features

  • Robust roadworthy design

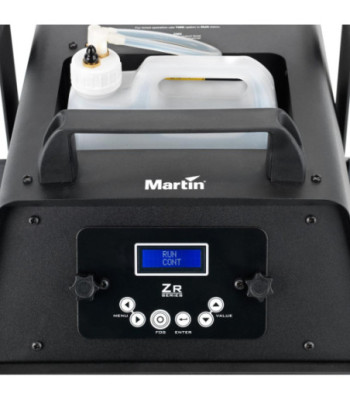

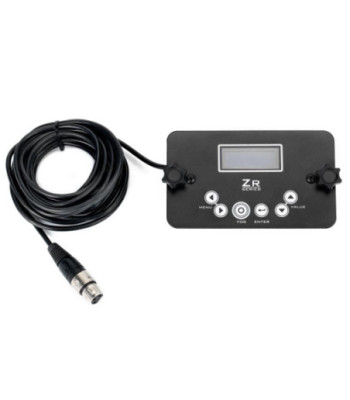

  • Integrated Digital Remote Control
  • DMX with RDM

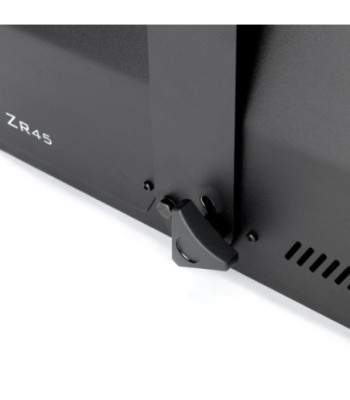

  • Floor standing or truss mounting (hanging bracket included)
  • 2000 W (EU model) / 1800 W (US model) heat exchanger
  • 1300 m³ (45,909 ft.³) per minute fog output
  • Variable output control for subtle effects
  • Continuous effect output
  • Compatible with a wide range of JEM Pro-Fog fluids

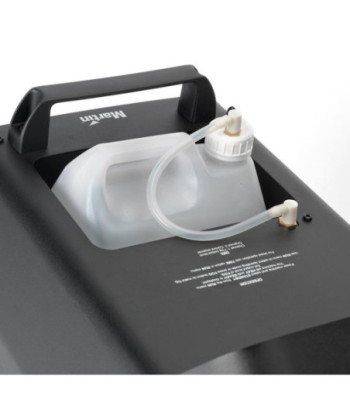

  • 5 l Fluid reservoir with quick-connect fitting
  • Easy external fluid connection
  • Optional Ducting Kit
Antal
Klar til afsendelse fra fjernlager

Specifications

  • PhysicalLength: 602 mm (23.1 in.)Width: 395 mm (15.6 in.)Height: 306 mm (12.1 in.)Height with hanging bracket: 393 mm (15.5 in.)Weight, dry: 17.7 kg (39.1 lbs.)Weight, filled: 22.7 kg (50 lbs.)
    PerformanceCoverage volume: 1300 m3 (45,909 ft3) per minuteFluid consumption (max.): 210 ml per minuteMaximum operating time, maximum output, 5 l of fluid: 1.18 hoursReady time: 10-minutesContinuous effect output
    Control and ProgrammingControl options: Integrated digital remote control, DMX, master/client link modeControl parameters: Continuous or timer-controlled outputFog: Variable output control, 0-100%DMX channels: 1External fluid control: Fluid sensingDMX compliance: ANSI E1.11 - USITT DMX512-ARDM compliance: ANSI/ESTA E1.20 RDM
    ConstructionHousing: Steel and aluminumColor: BlackHeat exchanger:

    1800 W, thermally protected (US Model)
    2000 W, thermally protected (EU Model)

    Fluid pump: Dual oscillating piston, high pressureFluid management: Fluid out sensing, sealed for transportationFluid reservoir: 5 l drop-in reservoir with quick-connect fittingRemote Control: Integrated Digital Remote with 3 m (9.84 ft.) cable, 3-pin XLRExternal Fluid Control: Fluid sensingHanging bracket: Integrated yoke with safety attachment point
    InstallationMounting: Standing or hangingOrientation: Up to +/-40° from horizontalClearance around machine: 100 mm (4 in.)

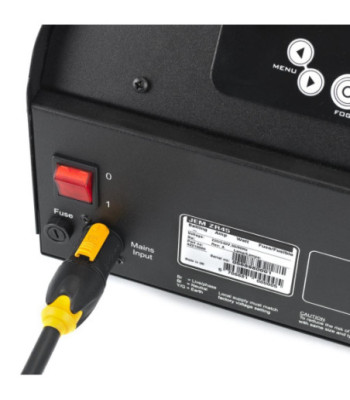

    ConnectionsAC Power: Neutrik PowerCON TRUE1DMX, link mode in/out: 5-pin locking XLRRemote control: 3-pin locking XLRFirmware: AVR socket
  • Electrical

    EU Model:
    AC power: 220-240 V AC nominal, 50/60 Hz
    Typical current draw: 9.2 A @ 230 V *
    Power Consumption
    Typical: 2100 W *

    US Model:
    AC power: 100-130 V AC nominal, 50/60 Hz
    Typical current draw: 15.0 A @ 110 V *
    Power Consumption
    Typical: 1800 W *

    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.

    ThermalMaximum nozzle temperature: 290° C (554° F)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Exterior surface temperature, steady state: 30° C (86° F)
    ApprovalsEU safety: EN 60 335-1EU EMC: EN 61000-6-3, EN 62233EU immunity: EN 61000-6-1US safety: UL 998Canadian safety: CSA C22.2 No 104Australia/NZ: RCM (pending)United Kingdom: UKCA
    Included ItemsFluid reservoir, 5 l: P/N 34300506JEM ZR Series Integrated Digital Remote Control: P/N M55765048Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043Power input cable, US, 20A, powerCON TRUE1, molded NEMA 5-20P, 2 m (6.6 ft.): P/N 11501046
    Accessories

    JEM ZR45 Ducting System with 5 m (16.4 ft.) 4" flexible ducting: P/N 92625014
    JEM External Fluid Reservoir Kit, 25 l: P/N 92620035

    Approved fluids*:
    JEM Pro-Fog Fluid, Quick Dissipating
    JEM Pro-Fog Fluid
    JEM Pro-Fog Fluid, High Density
    RUSH & THRILL Fog Fluid
    Martin Pro-Clean and Storage Fluid

    Approved discontinued fluids*:
    Pro Smoke Studio (DX)
    Pro Smoke Super (ZR)
    Pro Smoke High Density (SP)
    I-Fog Fluid
    Regular DJ Fluid (DJ)
    RUSH Fog Fluid
    RUSH ELX Smoke Fluid
    Martin Pro Clean Supreme

    Service Tools:
    Epsilon 5 AVR Programmer: P/N 50502004
    Temperature Calibration Box: P/N 92620005

    *Various sizes available - contact your dealer or see 'Fluids' product pages for details

    Installation hardware:
    Half-coupler clamp: P/N 91602005
    G-clamp (vertical hanging suspension only): P/N 91602003
    Quick trigger clamp (vertical hanging suspension only: P/N 91602007
    Safety cable, SWL 60 kg, BGV C1/ DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

JEM by Harman
ZR45
