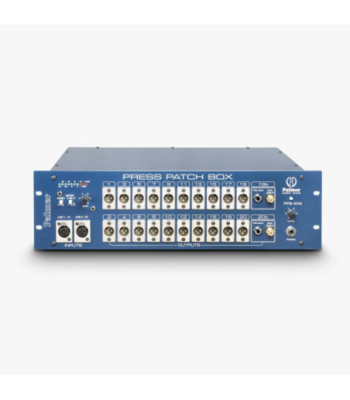

Palmer Press Patch Box 10-Channel Stereo / 20-Channel Mono

21.889,00 kr.
Inkl. moms
PB 20 S

A stereo version of the PPB20 is available in addition to the standard mono version. Instead of a microphone and line input, the stereo version is fitted with two line inputs.

The first line input is distributed to the upper row of outputs (meaning the uneven channels), while the second line input is distributed to the even channels (meaning the lower row of outputs).

Antal
Klar til afsendelse fra fjernlager

  • Signal distributor with 2 x 10 outputs
  • Isolated transformer-balanced XLR inputs for line level signals
  • High-quality input amplifier with gain control
  • 10 LEDs for level display from -40 to +10 dB

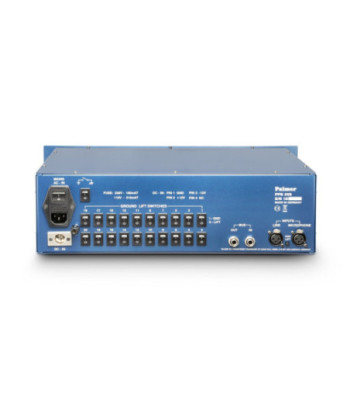

  • 2 x 10 transformer-balanced XLR outputs with paired driver circuitry and individual ground lift switches on the rear
  • 2 additional 6.35mm stereo jacks and RCA outputs
  • Nominal output Level +4 dBu/600 Ohms, jack and RCA outputs -10 dBu
  • Mono switch provides one input to the 20 outputs
  • Adjustable 6.35 mm headphone output
  • Summed input and cascaded output
  • Integrated shielded power supply
  • DC input for emergency power supply

Product typeSplitters
Typemic & line split
Split type2 in 10 + 10
Channels2
Number of inputs2
Input connectorsXLR
Max. input level+ 20 dB
Adjustable inputYes
Number of split-outputs per canal10
THRU outputs/channel1
Max. output level+ 20 dB
Nominal power consumption12 W
Maximum power consumption17 W
Output connectors6.3 mm jack
Output connectorsRCA
Output connectorsXLR
Adjustable outputNo
Transformer isolated outputsYes
Controlsattenuator
Controlsground lift
Controlsinput gain
Controlsmic/line switch
Controlsphones level
ControlsPower
Power supplyintegrated (115 / 230 V)
Cabinet materialsheet steel
Cabinet surfacePowder coated
Width480 mm
Width19 "
Depth200 mm
Height135 mm
Height3 U
Weight9,09 kg
Palmer
PPB20S
