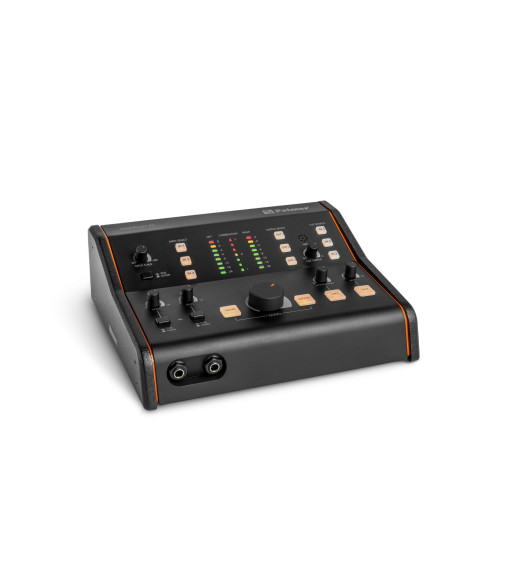

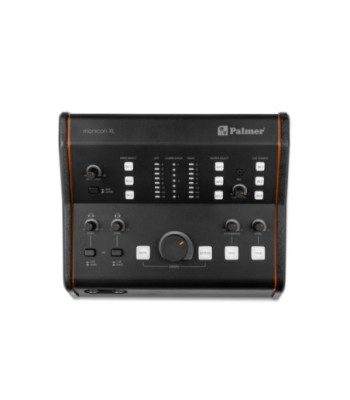

Palmer Active Studio Monitor Controller

2.339,00 kr.
Inkl. moms
MONICON XL

Switching between different signal sources and monitors is one of the most common tasks in any studio. Ergonomic console design and two clearly structured control levels makes the Palmer MONICON XL the perfect, intuitive nerve centre for all your requirements. Selecting audio sources and loudspeakers is convenient and at the touch of a button.

The Palmer studio monitor controller features three analog stereo inputs, one S/PDIF input and outputs for three monitor pairs, each with its own volume controller for level calibration. A further mono summed full-range output is also available for connecting either a mono monitor or a subwoofer. An exclusive highlight of the MONICON XL is its correlation meter, which displays the phase difference between a stereo signal's left and right channels. This facilitates the quick and simple discovery of mono-compatibility errors in mixes. The controller is also customisable to your personal work style.

Its fully analogue audio circuit means that the MONICON XL demonstrates absolutely no latency or signal distortion. Additional features that are a must for any studio make the device far more than simply a monitor controller. Two headphone outputs with volume controllers and main cue selector switches, a cue master controller and an on/off talkback microphone with volume control are all also included. As are a mute button and a dim button, with volume control, that instantly reduces the monitor level by a pre-set amount.

Antal
Klar til afsendelse fra fjernlager

  • Latency-free analogue signal path
  • Customisable
  • Level indicator L/R with +4, +10 and +18 dBu calibration options
  • Correlation meter for verifying mono-compatibility
  • Two headphone outputs with volume controllers and main cue selector switches
  • Three analogue inputs, one S/PDIF input
  • Three loudspeaker outputs with volume controllers for level calibration
  • Mono summed output for subwoofer or mono monitor
  • Main and cue direct outputs

Product typeOther Studio and Recording Equipment
OutputsOne unbalanced stereo CUE output
OutputsOne unbalanced stereo MAIN output
OutputsThree controllable and balanced stereo outputs
OutputsTwo stereo headphone outputs (PHONES)
Number of inputs3 + SPDIF
Input connectors3.5 mm TRS
Input connectors6.3 mm jack
Input connectorsRCA
Input connectorsSPDIF
Input typebalanced/unbalanced (depending on TS/TRS connection)
Max. input level20 dBu
Input impedance(balanced) 10.000 Ohm(s)
Input impedance(unbalanced) 5.000 Ohm(s)
Outputs7 x stereo
Output connectorsTRS balanced (1 - 3)
Output connectorsTRS unbalanced (CUE, MAIN, headphones 1 & 2)
Output impedance600 Ohm(s)
Frequency response12 - 90000 Hz
Total Harmonic Distortion (THD)0.002 % (BW 20 - 20,000 Hz)
Signal-to-noise ratio (SNR)102 dB (a-weighted) @ + 4 dBu
Dynamic range (DR AES17)115 dB
CMRR> 55 dB
Max. attenuation111 dB (Attenuator + Mute)
Max. attenuation86 dB (Attenuator)
Controlsattenuation
ControlsAudio DIM
Controlsinput selector
Controlsmono
Controlsmute
Controlsoutput selector
ControlsPFL source
ControlsTalkback
Housing materialsheet steel
Housing materialwood
Cabinet surfacePowder coated
Width254 mm
Height84 mm
Depth215 mm
Weight1,512 kg
Palmer
PMONICONXL
