Adam Hall Swivel castor 100 mm, with blue wheel and A/B-brake

179,00 kr.
Inkl. moms

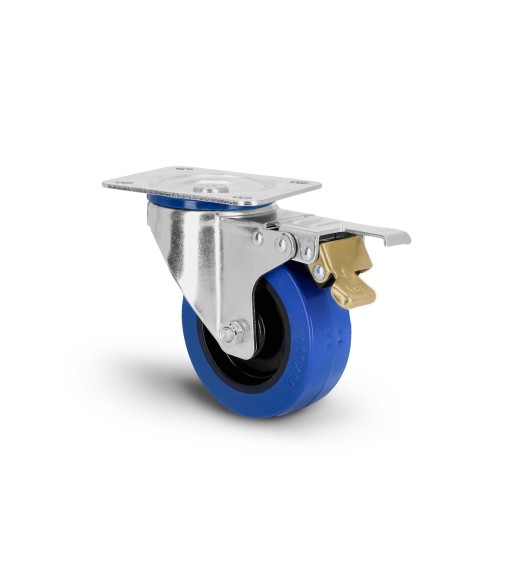

Adam Hall 372101 – Swivel castor 100 mm, with A/B brake and blue wheel

The Adam Hall 372101 is equipped with an innovative A/B brake that enables particularly convenient operation: lever A activates the brake, lever B releases it again. The total brake locks both the wheel and the swivel head for maximum stability with minimum effort.

The 100 mm blue wheel runs on a double ball race swivel and ensures reliable manoeuvrability. The 2 mm steel housing offers a high degree of stability. With a load capacity of 450 kg per set (4 pieces), the castor is also suitable for higher loads in professional use.

Standard hole spacings of 60 × 80 mm enable quick and secure installation.

Antal
Klar til afsendelse fra fjernlager

  • Double ball race swivel for smooth and precise steering behaviour
  • Sturdy housing made of 2 mm steel for high load-bearing capacity
  • Distance between mounting holes: 60 × 80 mm
  • Load capacity: 450 kg per set (4 castors)
  • Total lock brake – locks wheel and swivel head simultaneously
  • A/B double lever brake – two-part lever for easy activation and release of the brake

General

Maximum load per set (4 pc.)450 kg
Construction/method of assemblySurface mounting

Wheel

Roller typeStandard castor
MaterialRubber
ColourBlue
Diameter100 mm
Rim width35 mm
Tread width35 mm
With brakeYes
BearingRoller bearing

Housing

Cabinet materialSteel
Material thickness2.5 mm
ColourSilver

Dimensions & weight

Diameter of mounting holes8 mm
Width105 mm
Height125 mm
Depth80 mm
Weight1,055 g
Adam Hall Hardware
372101
