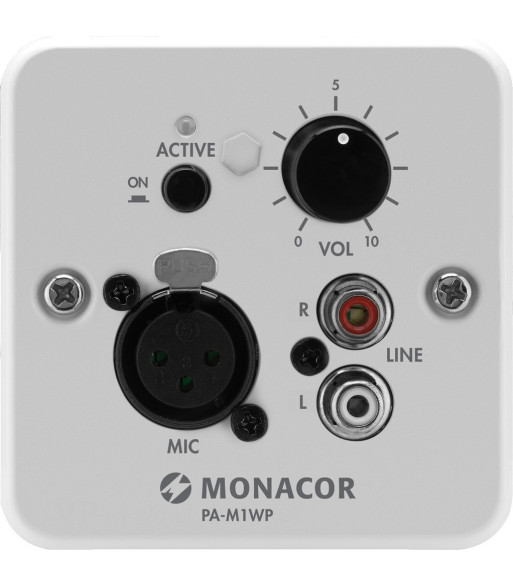

MONACOR Vægpanel - PA-M1WP

259,00 kr.
Inkl. moms

Wall module,
for local insertion of audio signals to PA matrix mixing amplifier PA-M224 or PA-M412.

  • Intended application: volume control of 1 zone, local insertion of audio signals
  • 2 x RCA jack for line signals
  • Microphone connection via 3-pole XLR jack
  • 14 V phantom power, to be activated as required
  • Volume control
  • Connection to PA-M224 or PA-M412 and power supply via RJ45 jack and Cat. 5 network cable (copper, supplied w/o cable), cable length up to 200 m
  • Matching flush-mounted housing ATT-300C is available at option

Antal
Klar til afsendelse fra fjernlager

LOG IND! Forspørg om prismatch, TILBUD på en eller flere varer

account_circle Forbindelse
Description wall module
Nominal value -
Type remote control of 1 zone
Colour white
Material plastic
Suitable for PA-M224, PA-M412
Power supply via PA-M224, PA-M412
Admiss. ambient temp. -
Dimensions 80 x 80 x 50 mm
Length -
Mounting dimensions -
Weight 120 g
Connections 1 x XLR (microphone),

1 x RCA L/R (line),

1 x RJ45
Other features 14 V phantom power
Packing unit 1
PA-M1WP
