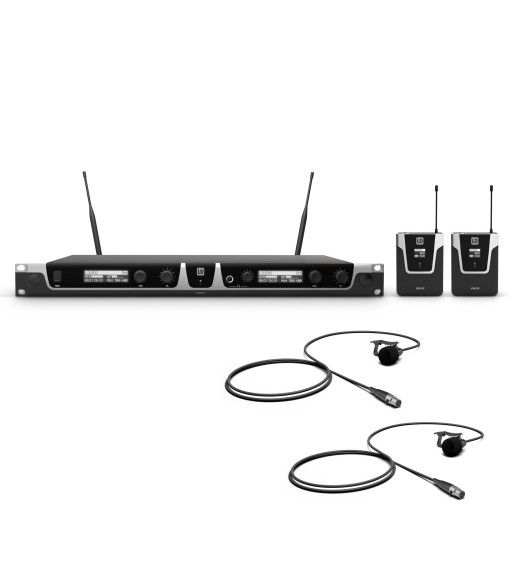

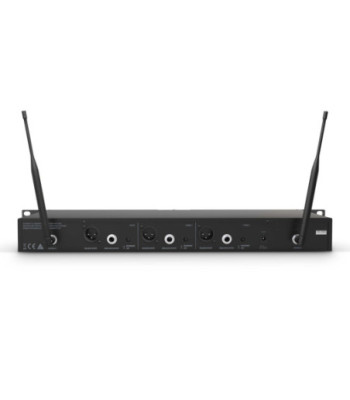

LD Systems Wireless Microphone System with 2 x Bodypack and 2 x Lavalier Microphone

19.569,00 kr.
Inkl. moms
U508 BPL 2

The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter_s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®_s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.

Overview of frequency ranges of vocal sets:

  • U505 // 584 - 608 MHz // 12 systems can be used simultaneously
  • U506 // 655 - 679 MHz // 12 systems can be used simultaneously
  • U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
  • U506 UK (Channel 38) // 606 _ 614 MHz // six systems can be used simultaneously
  • U518 // 1785 _ 1800 MHz // four systems can be used simultaneousl
Antal
Klar til afsendelse fra fjernlager

  • True diversity UHF wireless system
  • Shock-mounted dynamic and condenser microphone capsules
  • Automatic channel scan
  • Easy one-touch infrared frequency syncing
  • Pilot tone squelch circuit prevents noise
  • Switchable RF transmitter output (2, 10 or 30 mW)
  • Rugged enclosures
  • High-contrast OLED display

Product typeWireless Microphone System Accessories
Product typeWireless Microphone System Accessories
Product typeWireless Microphone System Accessories
Product typeWireless Microphone Systems
TypeMicrophones
TypeBodypack
Transmission frequency range823 - 832 MHz
Transmission frequency range863 - 865 MHz
TypeReceivers
TypeLavalier
Modulation TypeFM
Transmission frequency range823 - 832 MHz
Transmission frequency range863 - 865 MHz
Frequency response20 - 20.000
Channels96 (8 groups of 12 channels)
Transmission frequency range823 - 832 MHz
Transmission frequency range863 - 865 MHz
Weight5,8 kg
Groups8
DirectivityCardioid
Channels96 (8 groups of 12 channels)
Groups8
InputsMini-XLR (3-pin)
Antenna inputs2
Antenna connectorBNC
Nominal impedance680 Ohm(s)
Frequency response30 - 16000
Signal-to-noise ratio>90 dB
Frequency response30 - 16000
Noise reductionSquelch
Rated HF output powerVariable (2mW, 10mW, 30mW)
Total Harmonic Distortion (THD)< 0.3 %
Signal-to-noise ratio> 100 dB
Controlsarrow keys (up/down value entry)
ControlsPower On/Off
Controlsselect
IndicatorsOLED Display
Audio output, balancedXLR
Phantom power requierements5 V
Microphone inputMini-XLR (3-pin, female)
Audio output, unbalanced6.3 mm jack
Power supply2 x AA battery
Operating time>10 h (with alkaline batteries)
Width65 mm
Accessories (included)Attaching clip
Accessories (included)Foam windscreen
Height86 mm
Depth23 mm
Weight0,026 kg
Max. output level+10 dBu
Weight0,09 kg
Other featuresdetachable antenna
Other featuresIR frequency synchronisation
Other featuresPilot tone squelch, switchable gain
Other featuresswitchable gain
Other featuresswitchable RF power
Controlsdigital encoder
ControlsPower On/Off
Controlsvolume
IndicatorsOLED Display
Power supply12 - 18 V DC
Operating voltage12 V DC, 500 mA
Width212 mm
Height44 mm
Depth159 mm
Weight0,85 kg
Accessories (included)2 x antenna
Accessories (included)Audio cable
Accessories (included)power adapter
Other featureschannel search function
Other featuresIR frequency synchronisation
Other featuresPilot tone
LD Systems
LDU508BPL2
