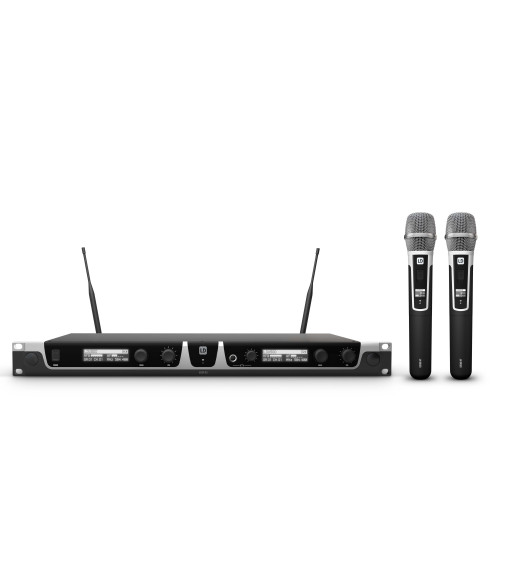

LD Systems Wireless Microphone System with 2 x Condenser Handheld Microphone

6.339,00 kr.
Inkl. moms

U505 HHC 2

The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter_s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®_s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.

Overview of frequency ranges of vocal sets:

  • U505 // 584 - 608 MHz // 12 systems can be used simultaneously
  • U506 // 655 - 679 MHz // 12 systems can be used simultaneously
  • U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
  • U506 UK (Channel 38) // 606 _ 614 MHz // six systems can be used simultaneously
  • U518 // 1785 _ 1800 MHz // four systems can be used simultaneousl
Antal
Klar til afhentning // afsendelse fra eget lager

  • True diversity UHF wireless system
  • Shock-mounted dynamic and condenser microphone capsules
  • Automatic channel scan
  • Easy one-touch infrared frequency syncing
  • Pilot tone squelch circuit prevents noise
  • Switchable RF transmitter output (2, 10 or 30 mW)
  • Rugged enclosures
  • High-contrast OLED display

Product type Wireless Microphone System Accessories
Product type Wireless Microphone System Accessories
Product type Wireless Microphone Systems
Type Microphones
Transmission frequency range 584 - 608 MHz
Type Receivers
Type true diversity
Type Handhelds
Modulation Type FM
Transmission frequency range 584 - 608 MHz
Channels 96 (8 groups of 12 channels)
Transmission frequency range 584 - 608 MHz
Weight 5,42 kg
Groups 8
Channels 2 x 96 (8 groups of 12 channels)
Groups 8
Microphone type condenser
Antenna inputs 2
Antenna connector BNC
Directivity Cardioid
Frequency response 60 - 16.000
Frequency response 30 - 16000
Noise reduction Squelch
Signal-to-noise ratio >95 dB
Total Harmonic Distortion (THD) < 0.1 %
Signal-to-noise ratio > 100 dB
Rated HF output power Variable (2mW, 10mW, 30mW)
Controls arrow keys (up/down value entry)
Controls Power
Controls Power On/Off
Controls select
Audio output, balanced 2 x XLR
Audio output, unbalanced 2 x 6.3 mm TS
Indicators OLED Display
Power supply 2 x AA battery
Audio mix output, balanced XLR
Audio mix output, unbalanced 6.3 mm jack
Operating time >10 h (with alkaline batteries)
Max. output level +10 dBu
Headphones ouput 1
Length 257 mm
Diameter 50 mm
Headphones outputs 6.3 mm TRS
Weight 0,25 kg
Other features incl. batteries
Other features IR frequency synchronisation
Controls 2 x volume
Controls Down
Controls Power On/Off
Controls Up
Controls volume
Indicators 2 x OLED Display
Operating voltage 12 V DC, 1000 mA
Width 484 mm
Height 44 mm
Depth 200 mm
Weight 2,05 kg
Accessories (included) 2 x antenna
Accessories (included) Audio cable
Accessories (included) power adapter
Other features channel search function
Other features IR frequency synchronisation
Other features Pilot tone
LD Systems
LDU505HHC2
1 Enhed
