  • Adam Hall Adapter cable - XLR 5-Pin Female x XLR 3-Pin Male - 0.2 m

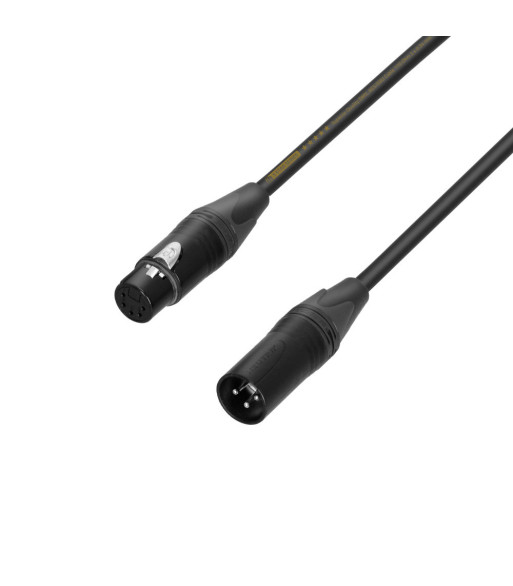

Adam Hall Adapter cable - XLR 5-Pin Female x XLR 3-Pin Male - 0.2 m

219,00 kr.
Inkl. moms

The Adam Hall 5 STAR SERIES XLR adapter cable from 5-pin female to 3-pin male delivers premium quality and exceptional reliability for professional use in lighting and audio applications. Fully compliant with DMX and AES/EBU standards, it ensures optimal performance even in demanding setups. Equipped with original Neutrik® connectors featuring silver-plated contacts, this cable guarantees superior signal transmission and durability, even under frequent use.

Crafted from high-quality oxygen-free copper (OFC), the cable ensures maximum signal purity and integrity. Its inner conductor, with a cross-section of 0.34 mm² (AWG22), provides outstanding stability and reliable signal transmission. A copper braided shield offers effective protection against electromagnetic interference (EMI), ensuring the highest transmission quality.

The UV-resistant jacket, made from a special soft PVC compound, combines exceptional flexibility with outstanding durability, making it ideal for challenging environments.

This premium cable was designed by the Adam Hall Cables® team in Germany and is manufactured in the EU to meet the highest quality standards.

Antal
Klar til afsendelse fra fjernlager

  • Adam Hall 5 STAR SERIES XLR adapter cable: 5-Pin Female to 3-Pin Male
  • DMX and AES/EBU compliant
  • Original Neutrik® connectors with silver-plated contacts for durability and transmission quality
  • Conductor material: OFC (oxygen-free copper)
  • Inner conductor cross-section: 0.34 mm² (AWG22)
  • Copper braided shielding for superior EMI protection
  • UV-resistant jacket made from soft PVC for flexibility and durability
  • Developed by Adam Hall Cables® in Germany
  • Manufactured in the EU

General

Cable length0.2 m
Cable jacketPVC (Polyvinyl chloride)
Cable diameter6.2 mm
Cable colourBlack

Plugs

Connector type plug 1XLR 5-pole female
Model name plug 1Neutrik NC5FXX-BAG
Contact material plug 1Silver plated
Connector type plug 2XLR 3-pole male
Model name plug 2Neutrik NC3FXX-BAG
Contact material plug 2Silver plated

Line

Conductor materialOFC (Oxygen-free copper)
Conductor cross-section2 x 0,34 mm²
Capacity/m63 pF
Conductor impedance/km53 Ohm
Characteristic impedance110 Ω
ShieldBraided copper shielding

Environmental

Ambient temperature-25 - 70 °C
Adam Hall Cables
K5DHM0020

Produktinformation

Farve
Sort
Kabel: Længde
0.2 meter
Kabel: Stik - start
XLR - 5pol - hun
Kabel: Stik - slut
XLR - 3pol - han
Kabel: Type
Signalkabel: Audio // Mikrofon - Dobbelt skærmet
Kabel: Kvalitet
5 STAR
