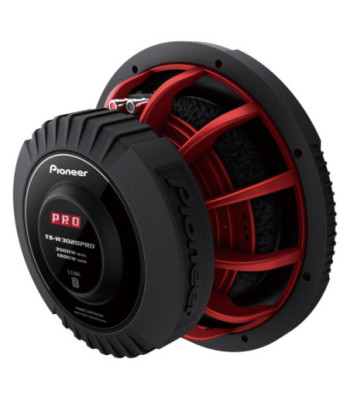

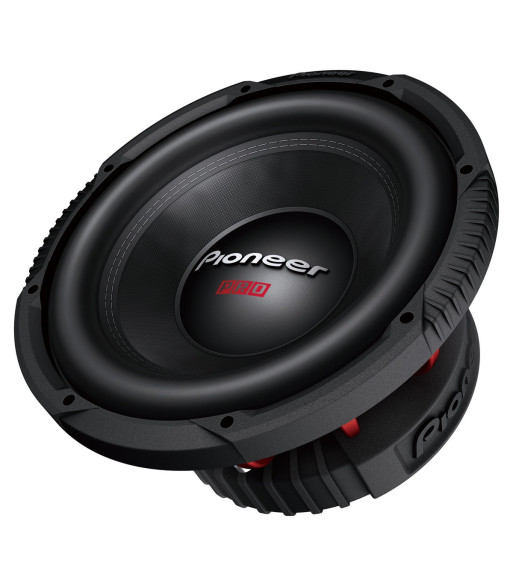

PRO SAMURAI SERIES - 12'' HIGH EFFICIENCY SUBWOOFER. (3500 W). TS-W3020PRO
search
  • PRO SAMURAI SERIES - 12'' HIGH EFFICIENCY SUBWOOFER. (3500 W). TS-W3020PRO
  • PRO SAMURAI SERIES - 12'' HIGH EFFICIENCY SUBWOOFER. (3500 W). TS-W3020PRO
  • PRO SAMURAI SERIES - 12'' HIGH EFFICIENCY SUBWOOFER. (3500 W). TS-W3020PRO

PRO SAMURAI SERIES - 12'' HIGH EFFICIENCY SUBWOOFER. (3500 W). TS-W3020PRO

2.799,00 kr.
Inkl. moms

PRO Samurai series TS-W3820PRO subwoofer has a nominal power 1800 W and double coil with impedance 2 + 2 ohms. The wide stitched-reinforced urethane surround provides long cone stroke and a secure fit at high volumes. The 4-layer copper-clad aluminum voice coil allows to achieve weight reduction and high sensitivity. The high quality aluminum basket construction dissipates heat away from the voice coil. Big double magnet provides high power.

Antal
Klar til afsendelse fra fjernlager

Samurai Yes
PRO Pioneer Reference for Open Show Yes
Size 30 cm
Type Subwoofer
Maximum power 3500 W
Continuous Power Output 1800 W
Frequency response 20 Hz to 200 Hz (In-Car)
Sensitivity 88 (1 W/In-car) dB
Impedance 1 _ or 4 _
Dual Voice Coil (DVC) Yes
Mounting Depth 154 mm
Woofer Cut-Out Hole _352 mm
Woofer material Paper
Surround Urethane
Spider Polyester Fibre
Voice Coil type 4-layer Long Copper
Voice Coil bobbin type Aluminium
Terminals Push
Magnets Ferrite
38cm / 15" Yes
Recom. Enclosure [l] 57 (Sealed Enclosure)
90 (Ported Enclosure)
Recom. Enclosure [ft3] 2.01 (Sealed Enclosure)
3.18 (Ported Enclosure)
Weight 11.7 (Excluding accessories) kg
Dimensions _405 x 216 mm
Accessories Subwoofer mounting screws

THIELE/SMALL PARAMETERS

Qts 0.8
Fs [Hz] 27.1 Hz
Vas [ft3] 2.69
Vas [l] 76.20
Xmax [mm] 22.8
Pioneer
TS-W3020PRO

Produktinformation

AutoStereo: Enhedstype
Bass enhed
AutoStereo: Max Power
3500 W
AutoStereo: RMS Power
1500 W
AutoStereo: Følsomhed (dB)
88 dB
AutoStereo: Frekvens område
20 Hz - 200 Hz
AutoStereo: Impedans Ω
2 x 2 Ω
AutoStereo: Diameter
305 mm
AutoStereo: Hul Mål
283 mm
AutoStereo: Montage Dybde
172 mm
