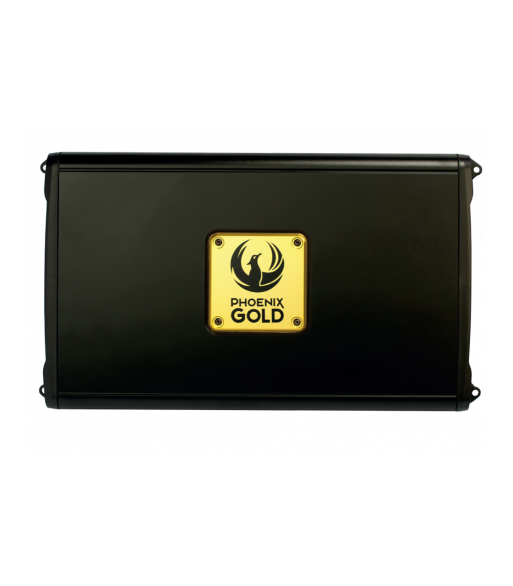

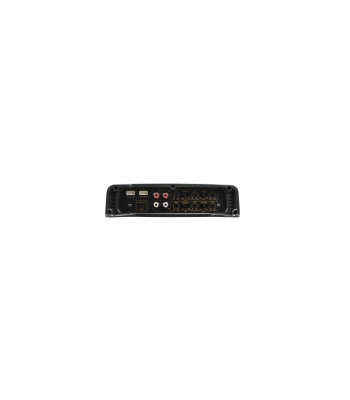

Phoenix Gold RX2 400.4

2.099,00 kr.
Inkl. moms

_ 400 Watt 4 Channel Class A/B Amplifier
_ Small Footprint Chassis Design
_ Robust Unregulated Power Supplies
_ Rotatable Badging for installation flexibility
_ High level Inputs for Easy OEM Integration
_ Audio Precision® Quality Control Verification
_ Class A/B Topology

Antal
Klar til afsendelse fra fjernlager

Product Details:

  • 400 Watt 4 Channel Class A/B Amplifier
  • System Configuration Flexibility of 4/3/2 Channel with 400 watts of power
  • Power Handling
    • POWER Standard 4 Channel Mode
      • 60w x 4 @ 4 Ohm
      • 100w x 4 @ 2 Ohm
    • POWER Standard 3 Channel Mode
      • 60w x 2  @ 4 Ohm + 200w x 1 @ 4 Ohm
      • 100w x 2 @ 2 Ohm + 200w x 1 @ 4 Ohm
  • Frequency Response: 14Hz _ 36Hz
  • Crossover: 40-200Hz
  • Subsonic Filter: 10-40Hz
  • Input Sensitivity: 177mV _ 5.7V
  • Selectable Bass EQ: 0dB-6dB-12dB
  • Signal to Noise (@ CEA Standard): 80.1dB
  • Heatsink Type: Extruded Aluminum
  • Cooling Type: Radiation
  • Operating Voltage: 8V to 16V
  • Switchable Auto-Turn On: Yes
  • Power Supply Type: Unregulated
  • Onboard Thermal Management
  • Power Terminal: 4 Gauge
  • Speaker Terminal: 12 Gauge
  • Recommended Fusing: 2 x 30A
  • Dimensions: 17.25"L x 9.5"W x 3.5"H
  • 1-year Manufacturer's Warranty
Phoenix Gold
RX24004

Produktinformation

AutoStereo: Max Power
400 W
AutoStereo: Forstærker Type
A/B
AutoStereo: Signal Støjforhold (dBA)
80 dB
AutoStereo: Power Vdc
14,4 V
AutoStereo: Per Kanal 4 Ω
4 x 75 W RMS
AutoStereo: Per Kanal 2 Ω
4 x 100 W RMS
AutoStereo: Bridged i 4 Ω
2 x 200 W RMS
AutoStereo: Crossover
HPF / LPF
AutoStereo: Kanaler
4
