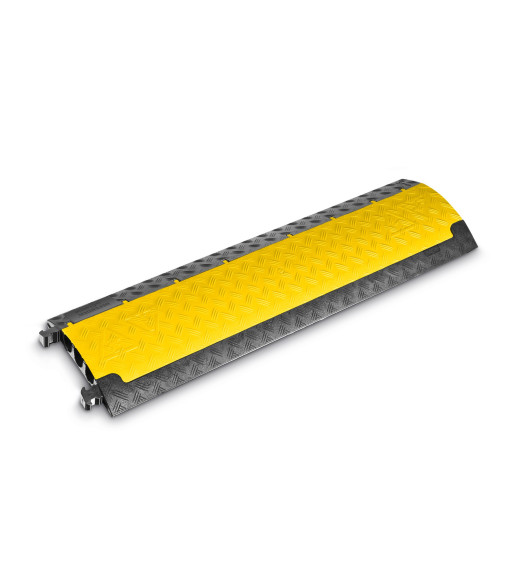

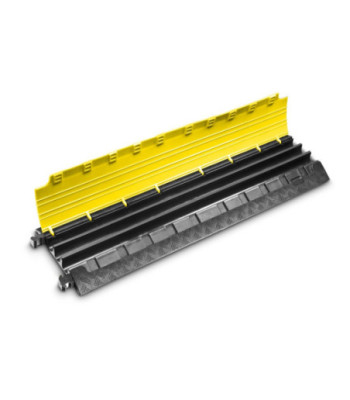

Defender Cable Protector 3-Channel
search
  • Defender Cable Protector 3-Channel
  • Defender Cable Protector 3-Channel
  • Defender Cable Protector 3-Channel
  • Defender Cable Protector 3-Channel

Defender Cable Protector 3-Channel

1.429,00 kr.
Inkl. moms
MINI3 small cable channels _ light and robust

The Defender® MINI cable crossovers are also available with either a black or yellow lid and are suitable for indoor and outdoor use. The flat, compact, 3-channel cable crossover with integrated connector plugs and non-slip base provides optimum support on a wide variety of floors. Separately available end ramps (male/female) ensure safe and orderly insertion and removal of cables. Defender MINI cable crossovers withstand a load of 2 tonnes on an area of 20 x 20 cm, so they are suitable for light vehicles, trolleys and pedestrians. Defender MINI cable crossovers can be used at carnival events, trade shows, exhibitions, shopping centres and storage facilities as well as in theatres, studios and TV stations. Not suitable for road traffic.

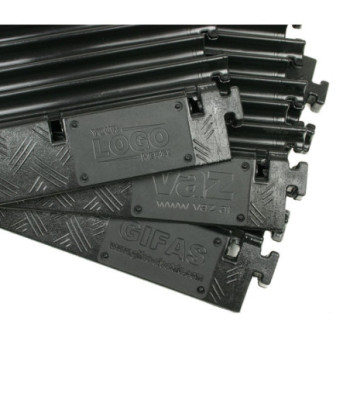

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don_t hesitate to contact us.

Antal
Klar til afsendelse fra fjernlager

  • Compact, non-slip cable protector made of black, recyclable polyurethane
  • Yellow polyurethane lid with high warning effect and secure closure (also available with black lid, Item No. 85200BLK)
  • Patented, self-cleaning lid hinge
  • 3 channels: 1 channel 35 x 35 mm, 2 channels 35 x 30 mm
  • Load bearing capacity approx. 2t / 20 x 20 cm
  • Fire resistance class E according to DIN EN 13501-1 (B-s1 applied for)
  • Resistant to oil, acid, petrol and short-term contact with solvents
  • Dimensions 105 x 29 x 5 cm; Weight 6 kg
  • Reliable protection for cables and personnel for indoor and outdoor use
  • Not suitable for vehicular traffic
  • End ramps for secure cable inlet and exit as accessories
  • TÜV SÜD certified

Product typeCable Protectors
Type3 Channels
Width290 mm
Height50 mm
Length1005 mm
Channels3
Width channel 135 mm
Height channel 130 mm
Width channel 235 mm
Height channel 235 mm
Width channel 335 mm
Height channel 330 mm
MaterialPolyurethane
Max loadapprox. 2 t on a surface area of 20 x 20 cm
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Chemical resistanceShort-term contact with solvents
Hardness range88 Shore ± 4 Shore
Fire protection classClass E in accordance with DIN EN 13501-1 (B-s1 pending)
Temperature range-30 to +60 °C
Weight5,676 kg
Defender
85200
