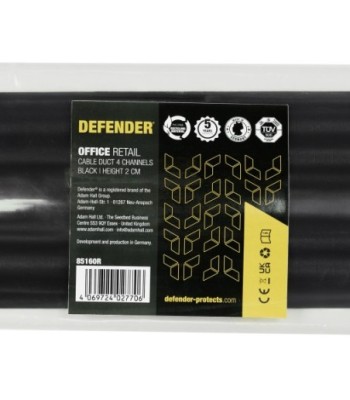

Defender Cable duct 4 channels - individually packaged - black - office - height 2cm

399,00 kr.
Inkl. moms
4 mini channels – indoor & design solution

Available with a choice of black, grey and yellow colours, the Defender® OFFICE cable protection system is the elegant solution for secure pedestrian traffic in conference facilities, exhibitions, public buildings, retail outlets, shopping malls, trade shows and offices. Featuring straight, 90° and end ramps with cutting guides for length adjustment, zigzag connection and bolt holes for ground fixing, the Defender® OFFICE system provides versatile cable routing while preventing tripping hazards.

Antal
Klar til afsendelse fra fjernlager

  • Individually packaged, ideal for retail sales
  • Non-slip, ultra-flat cable protector made of recyclable polyurethane for indoors
  • Zigzag connector system, pre-drilled mounting holes, cutting guides for shortening
  • 4 channels: 2 channels each 10 x 10 mm and 12 x 12 mm
  • Complies with German workplace accident prevention regulations (§ 3 A1 ArbStättV)
  • Fire resistance class B2 (DIN 4102)
  • Resistant to oil, acids, solvents, and petrol
  • Dimensions 86.5 x 12.5 x 2 cm; Weight 1.2 kg
  • Reliable protection for cables and personnel
  • Available in black (Item No. 85160), grey (Item No. 85160GREY) and yellow (Item No. 85160YEL)
  • Curves and end ramps for flexible cable protection are available as accessories
  • TÜV SÜD certified

General

MaterialTPU (Thermoplastic polyurethane)
Surface structureAbrasive
ColourBlack
Lid colourBlack
Maximum load (on 20 x 20 cm)0.4 t
Load per axle0.8 t
Chemical resistanceOil
Chemical resistancePetrol
Chemical resistanceSolvents (short-term contact)
Shore hardness (±4 Shore A)88 Shore A
ShapeRound

Cable ducts

Quantity4
Cable ducts size (W x H)10 mm x 10 mm / 12 mm x 12 mm

Environmental

Meets TSCAYes
Meets CP65Yes
Fire protection class per DIN 4102-1B2
Fire protection class per EN 13501-1E
Inflammability (UL 94)HB
Inflammability (UL 94)V-2
Ambient temperature-30 - 60 °C

Dimensions & weight

Length865 mm
Width125 mm
Height20 mm
Weight1.25 kg
Defender
85160R
