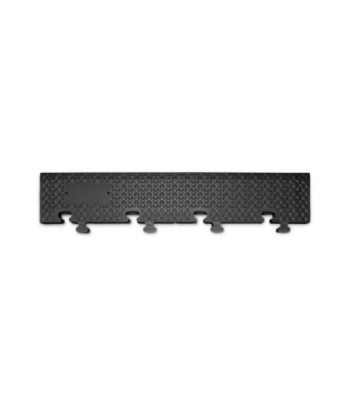

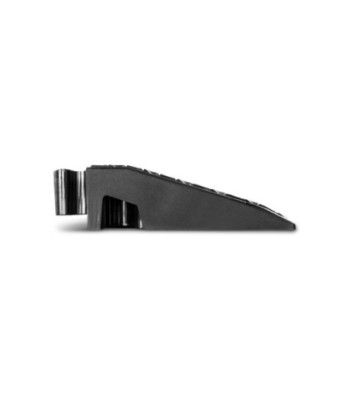

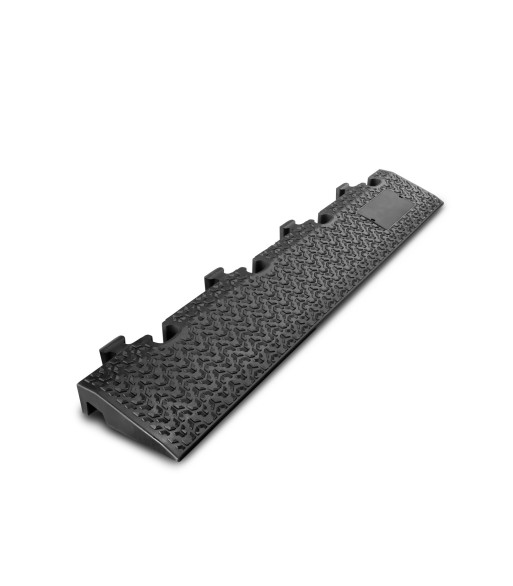

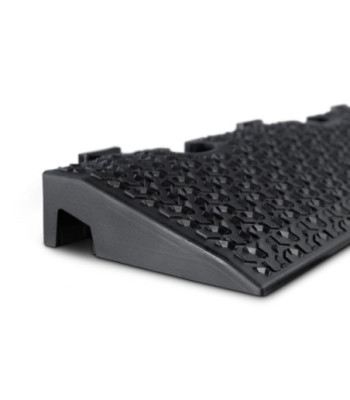

Defender Short ramp for the MIDI 5 2D modular system

629,00 kr.
Inkl. moms
MIDI 5 2D RS

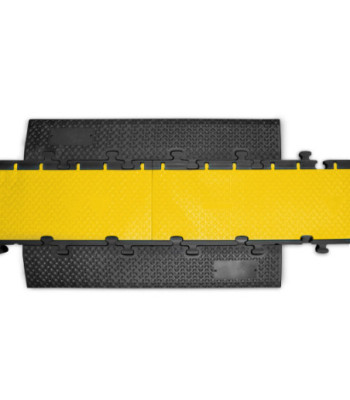

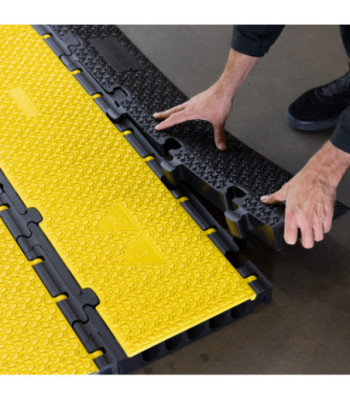

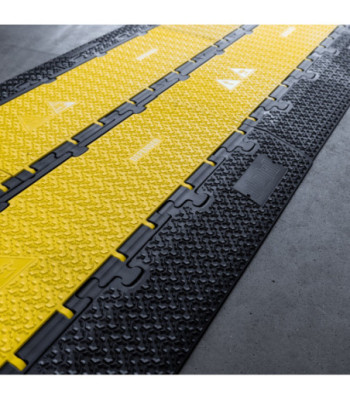

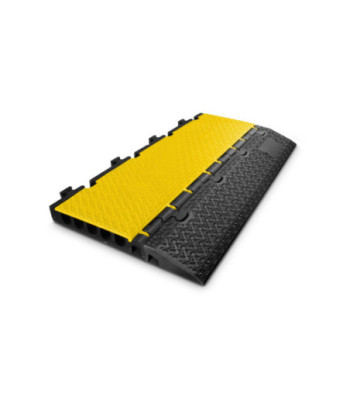

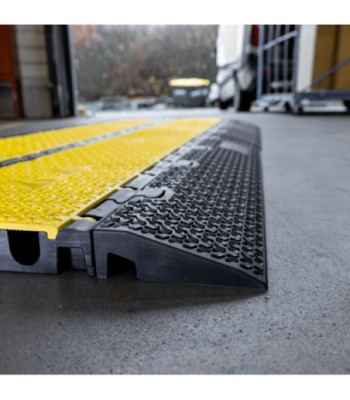

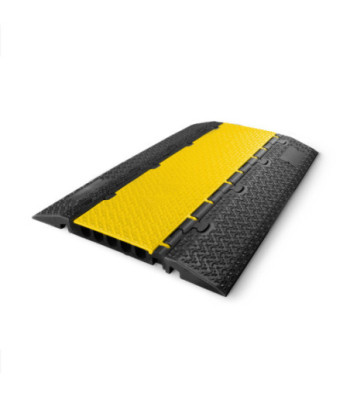

The DEFENDER® 2D modular cable protectors have been developed with focus on optimum accessibility, on the basis of our popular cable protector DEFENDER® MIDI. The modular system consists of a middle section and a wheelchair accessible ramp, compatible with the DEFENDER® MIDI series, as well as a short ramp and middle section. The system can be extended and combined as required, both in length and in width. Extremely easy handling.

Antal
Klar til afsendelse fra fjernlager

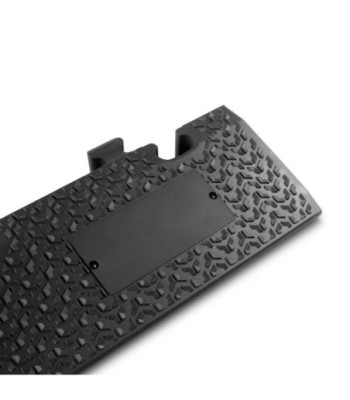

  • Heavy-duty ramp with 3-D Lasergrip anti-slip surface made out of black, recycled polyurethane
  • Fully compatible with DEFENDER® MIDI cable protectors
  • Load capacity: approx. 5 t / 25 × 30 cm
  • Made of extremely robust and break-proof TPU
  • Dimensions: 100 × 5.3 × 17,2 cm
  • Flame resistant E according to DIN EN 13501-1
  • TÜV SÜD certified
  • Resistant to oil, petrol and short-term contact with solvents
  • Made in Germany

Product typeCable Protectors
TypeRamp Module
MaterialPolyurethane
Length1000 mm
Height53 mm
Width172 mm
ColorBlack
Max loadApprox. 5 t on a surface area of 25 x 30 cm
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Chemical resistanceShort-term contact with solvents
Hardness range88 Shore ± 4 A Shore
Fire protection classClass E in accordance with DIN EN 13501-1 (B-s1 pending)
Temperature range-30 to + 60 °C
Special feature2D cable bridge (modular in length and width)
Weight4,3 kg
Defender
869302
