Defender Midi 5 2D module system for wheelchair ramp and wheelchair accessible transition - middle part blue lid

1.999,00 kr.
Inkl. moms
MIDI 5 2D BLUDefender 2D M modular systems for wheelchair accessibility

In order to ensure the greatest level of accessibility, the modular DEFENDER® 2DM cable protector was inspired by our popular DEFENDER® MIDI cable protector. The modular system comprises a MIDI-compatible middle section and a flat ramp, which can be expanded and combined as needed, both in terms of length and width. Plus, it's also extremely easy to handle.

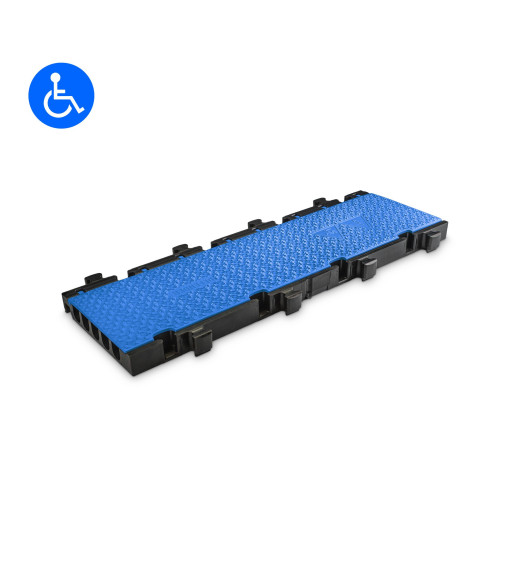

Middle section

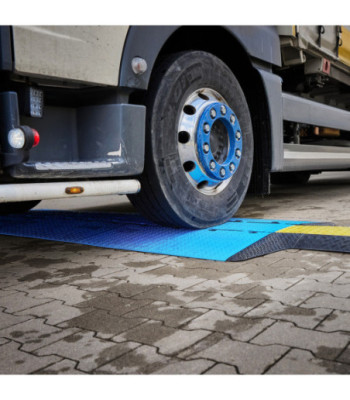

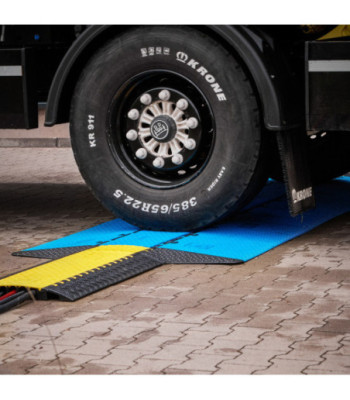

'Accessibility' has become a topic of mounting concern for both public authorities and event organizers over the past few years. With most common cable protector systems, a compromise usually has to be made between wheelchair access and trafficability. But this is not the case with the new DEFENDER® 2D M: each middle section can be equipped with a 6° inclined, wheelchair ramp that can be driven over completely without any problems. The flat incline makes it easy for wheelchair users to roll over the protectors with no trouble at all. They're also so stable that even forklifts and trucks can drive over them.

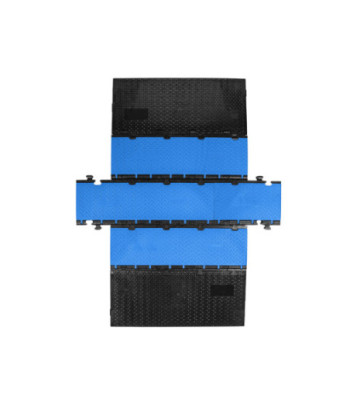

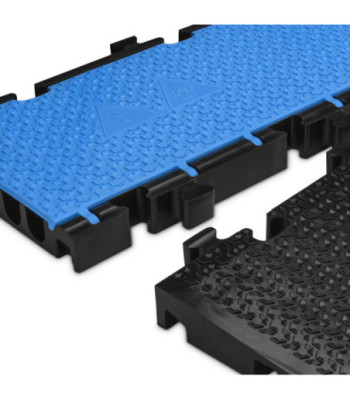

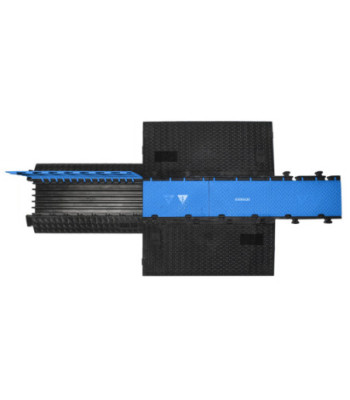

The system length and width can be expanded, and thus guarantee easy access and safety to areas where five channels are typically not enough, for example, near power generators or FOH areas. Sound, lighting and mains cables can be laid out individually, effortlessly and safely. The middle sections are designed to be symmetrical all the way around to facilitate assembly so that you never have to look for the right attachment piece ever again. As such no assembly diagrams are required. The symmetrical set-up makes it possible to achieve excellent longitudinal and lateral stability by arranging middle sections and ramps. It also means there are no loose parts which can easily be lost such as adapters and spanners. The connections were engineered to provide enough room to play around for simple assembly but also to offer a sufficient level of stability. Adapters for joining middle sections longitudinally are also available should the cable protectors need be installed without ramps.

Antal
Klar til afsendelse fra fjernlager

  • Heavy-duty all-round cable protector with 3-D Lasergrip anti-slip surface made out of black, recycled polyurethane

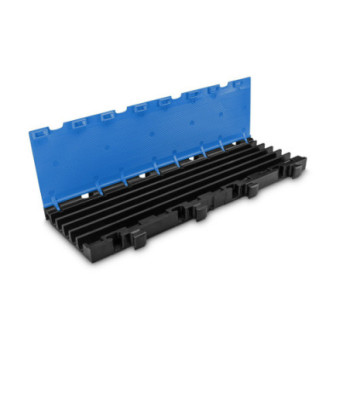

  • Blue, recyclable polyurethane lid with high visibility, secure locking mechanism, self-cleaning system and lid hinge
  • Simple, multidirectional modular structure with unlimited expandability in width and length
  • Fully compatible with DEFENDER® MIDI cable protectors

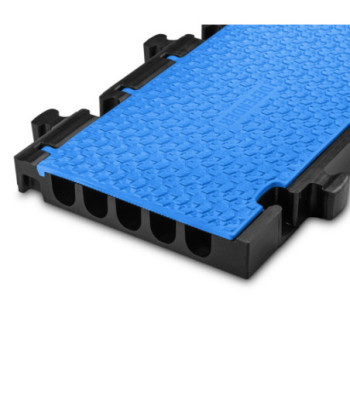

  • Five 34,5 × 38,6 cm channels
  • Load capacity: approx. 5 t / 25 × 30 cm
  • Made of extremely robust and break-proof TPU
  • Dimensions: 100 x 5.4 x 32.5 cm
  • Fire protection class E according to DIN EN 13501-1
  • TÜV SÜD certified
  • Resistant to oil, petrol and short-term contact with solvents
  • Made in Germany

Product typeCable Protectors
Type5 Channels
Length1000 mm
Height54 mm
Width325 mm
Channels5
Width channel 134.5 mm
Height channel 138.6 mm
Width channel 234.5 mm
Height channel 238.6 mm
Width channel 334.5 mm
Height channel 338.6 mm
Width channel 434.5 mm
Height channel 438.6 mm
Width channel 534.5 mm
Height channel 538.6 mm
MaterialPolyurethane
Max loadApprox. 5 t on a surface area of 25 x 30 cm
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Chemical resistanceShort-term contact with solvents
Hardness range88 Shore ± 4 A Shore
Fire protection classClass E in accordance with DIN EN 13501-1 (B-s1 pending)
Temperature range- 30 to 60 °C
Weight10,2 kg
Special feature2D cable bridge (modular in length and width)
Defender
869300BLU
