Defender Midi 5 2D set blue module system for wheelchair ramp and wheelchair accessible transition

7.109,00 kr.
Inkl. moms
MIDI 5 2D SET BLUBlue DEFENDER® 2D M Set, modular system, wheelchair friendly.

For optimal wheelchair accessibility, the modular cable protector DEFENDER® 2D M Blue was developed on the basis of our popular DEFENDER® MIDI cable protector. It consists of a blue middle section that is compatible with the MIDI and two flat blue ramps that can be combined and extended as required, both in length and width. Plus, it's also extremely easy to handle.

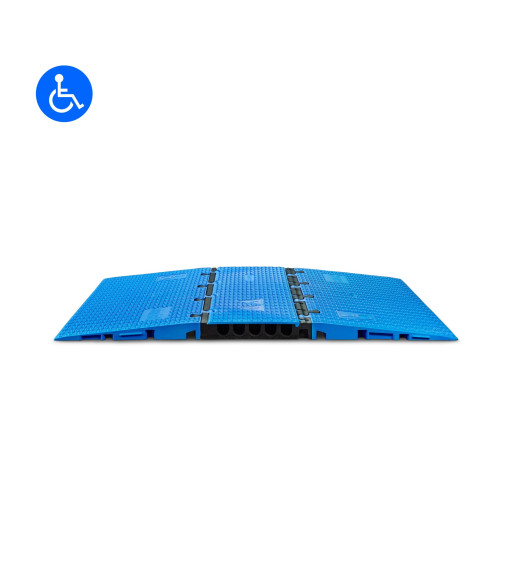

DEFENDER® MIDI 5 2D Set with a blue cover 'Barrier-free accessibility' has become a topic of mounting concern for both public authorities and event organisers over the past few years. Conventional cable protector systems often mean having to make a compromise between accessibility and passability. But this is not the case with the new Blue DEFENDER® 2D M: each middle section can be equipped with two 6° inclined ramps that can be driven over completely without any problems. The flat incline makes it easy for wheelchair users to roll over the protectors with no trouble at all. They're also so stable that even forklifts and lorries can drive over them. Easy access and safety to areas where five channels are typically not enough, for example, near power generators or FOH areas, are thus also guaranteed. Sound, lighting and power cables can be laid out individually, effortlessly and safely. The middle sections are designed to be symmetrical all the way around to facilitate assembly so that you never have to look for the right attachment piece ever again. As such, no detailed assembly diagrams are required. The connections have been designed to have enough space for easy installation.

Antal
Klar til afsendelse fra fjernlager

Set consisting of 2 ramps and a middle section

  • Heavy-duty all-round cable bridge with 3D laser grip anti-slip surface made of blue recycled polyurethane and patented self-cleaning lid hinge
  • Simple, multidirectional modular structure with unlimited expandability in width and length
  • Fully compatible with Defender MIDI cable protectors
  • Five 34 × 36 cm channels
  • Load capacity: approx. 5 t / 25 × 30 cm
  • Made of extremely robust and break-proof TPU
  • TÜV SÜD certified
  • Resistant to oil, acid, petrol and short-term contact with solvents
  • Made in Germany

Product typeCable Protectors
Product typeCable Protectors
Product typeCable Protectors
TypeSet
Type5 Channels
TypeRamp Module
MaterialPolyurethane
Length1000 mm
Weight31,76 kg
Length1000 mm
Height54 mm
Width325 mm
Height54 mm
Width430 mm
Channels5
Width channel 134.5 mm
ColorBlue
Max loadApprox. 5 t on a surface area of 25 x 30 cm
Height channel 138.6 mm
Width channel 234.5 mm
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Chemical resistanceShort-term contact with solvents
Hardness range88 Shore ± 4 A Shore
Height channel 238.6 mm
Width channel 334.5 mm
Height channel 338.6 mm
Temperature range-30 to + 60 °C
Fire protection classB-s1 (flame resistant) according to DIN EN 13501-1 (pending)
Width channel 434.5 mm
Height channel 438.6 mm
Special feature2D cable bridge (modular in length and width)
Special featureTÜV SÜD certified
Weight8,5 kg
Width channel 534.5 mm
Height channel 538.6 mm
MaterialPolyurethane
Max loadApprox. 5 t on a surface area of 25 x 30 cm
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Chemical resistanceShort-term contact with solvents
Hardness range88 Shore ± 4 A Shore
Fire protection classClass E in accordance with DIN EN 13501-1 (B-s1 pending)
Temperature range- 30 to 60 °C
Weight10,2 kg
Special feature2D cable bridge (modular in length and width)
Defender
869300SETBLU
