Defender Cable Protector 3-channel LUX

3.269,00 kr.
Inkl. moms
3 LUX

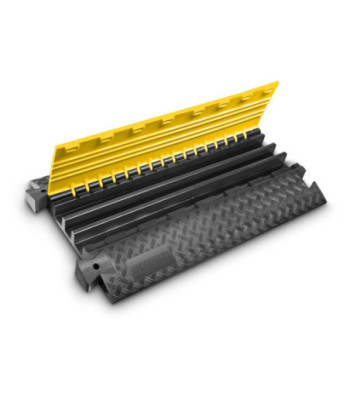

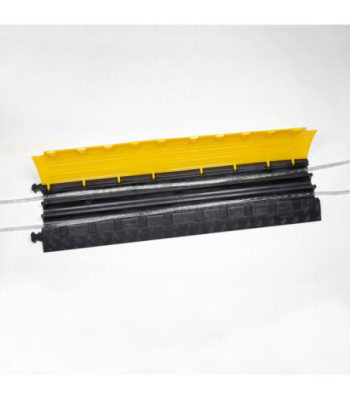

The ultimate solution for protecting your cables and for preventing people from tripping. The innovative cable protctors from the Defender LUX Series have highly transparent, yellow-tinted lids, where LED light tubes can be inserted parallel tocables and other pipes. Defender LUX cable protectors have been developed in collaboration with event organisers and operators of large halls and festival venues according to the latest state-of-the-art technology and also ensure the highest possiblelevel of safety and visibility in the dark, both indoors and outdoors. For more information, please refer to our price list for Defender LUX cable crossovers, or contact your Defender representative directly.

3 Big Channels - Most Popular

Featuring a 73 mm profile, 45° curve and end ramps with detachable dovetail connectors the Defender® 3 cable protection system provides versatile cable routing and safe crossing for vehicles and pedestrians. With 3 medium large channels, built-in handles for easy portability and a 5 t per 25 x 30 cm load capacity the 73 mm profile Defender® 3 cable protectors are the perfect all-round choice for a wide variety of applications including heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls and music events.

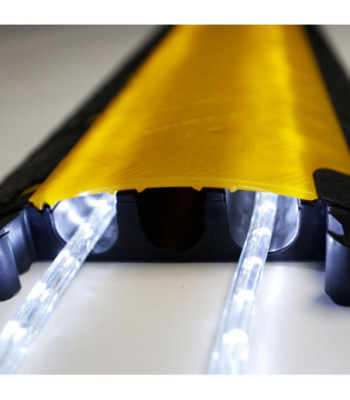

Defender LUX cable protectors can be used with commercially available light tubes. Light tubes with a so-called neon effect are especially recommended since the individual LEDs are less visible and this provides for particularly homogeneous lighting.For outdoor use, please mind the appropriate IP classification of the light tube. The use of LED strips and other unidirectional light-emitting products or fairy lights is not recommended.

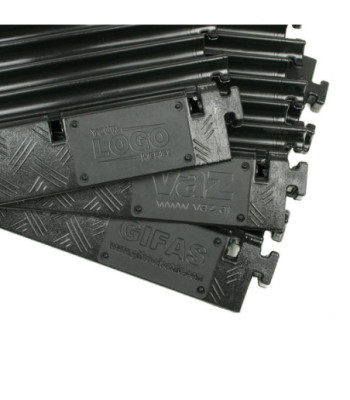

Label your cable protectors! Customise the Defender cable protectors with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool above the text. Feel free to contact us for more information.

Antal
Klar til afsendelse fra fjernlager

  • Heavy-duty,non-slip all-round cable protector made of black, recyclable polyurethane with built-in carrying handles
  • Highly transparent yellow-tinted lid for use in the dark with light tubes
  • Patented, self-cleaning lid hinge
  • 3 channels: 1 channel 45 x 50 mm, 2 channels 52 x 49 mm
  • Load capacity: approx. 5 t on a surface area of 25 x 30 cm
  • Fire protection class E according to DIN EN 13501-1 (B-s1 pending)
  • Resistant to oil, petrol and short-term contact with solvents
  • Dimensions 105 x 60.5 x 7.3 cm; Weight 23.7 kg
  • Reliable protection for cables and personnel for indoor and outdoor use
  • Curves, end ramps, and connector plugs are available as accessories

Product typeCable Protectors
Type3 Channels
Width600 mm
Height73 mm
Length1000 mm
Channels3
Width channel 152 mm
Height channel 149 mm
Width channel 245 mm
Height channel 250 mm
Width channel 356 mm
Height channel 349 mm
MaterialPolyurethane
Max loadApprox. 5 t on a surface area of 25 x 30 cm
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Chemical resistanceShort-term contact with solvents
Hardness range88 Shore ± 4 Shore
Fire protection classB2
Temperature range-40 to +70 °C
Weight23,6 kg
Special featureAvailable also in B1
Special featureInclusive 2 connector plugs
Defender
85002LUX
