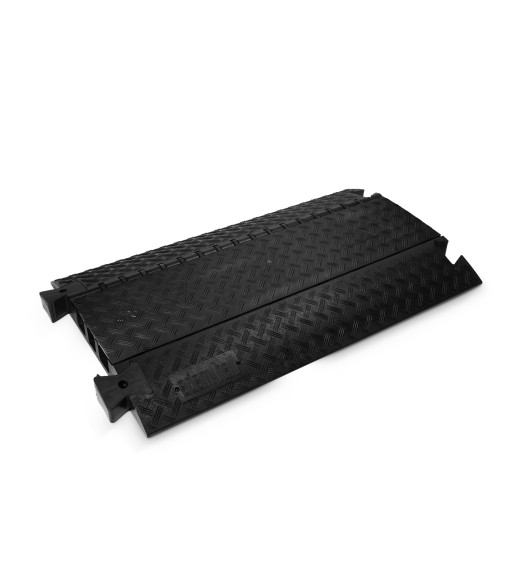

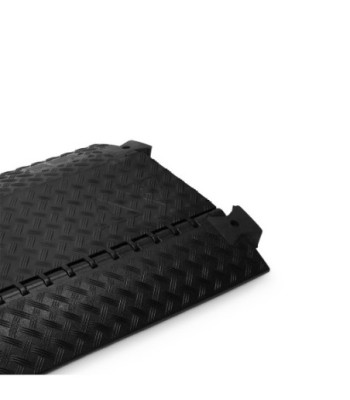

Defender Cable protector 3 channels - black - heavy duty - height 7.5cm

18.349,00 kr.
Inkl. moms

3 big channels - most popular

Featuring a 73 mm profile, 45° curve and end ramps with detachable dovetail connectors, the Defender® 3 cable protection system provides versatile cable routing and safe crossing for vehicles and pedestrians. With 3 medium large channels, built-in handles for easy portability and a 5 t per 25 x 30 cm load capacity the 73 mm profile Defender® 3 cable protectors are the perfect all-round choice for a wide variety of applications including heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls and music events.

Label your cable protector! Customise the Defender cable protector with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool. Feel free to contact us for more information.

Antal
Klar til afsendelse fra fjernlager

  • Heavy-duty, non-slip all-round cable protector made of black, recyclable polyurethane with built-in carrying handles
  • Black polyurethane lid with secure closure
  • Patented, self-cleaning lid hinge
  • 3 channels: 1 channel 45 x 50 mm, 2 channels 52 x 49 mm
  • Load capacity approx. 5 t / 25 x 30 cm
  • Fire protection class E according to DIN EN 13501-1
  • Resistant to oil, petrol and short-term contact with solvents
  • Dimensions 105 x 60.7 x 7.3 cm; Weight 23.5 kg
  • Reliable protection for cables and personnel for indoor and outdoor use
  • Curves, end ramps, and connector plugs are available as accessories
  • TÜV SÜD certified

General

MaterialTPU (Thermoplastic polyurethane)
Surface structureRibbed
ColourBlack
Lid colourBlack
Maximum load (on 25 x 30 cm)5 t
Max. Passing speed7 km/h
Chemical resistancePetrol, Solvents (short-term contact), Oil
Hardness range (±4 Shore A)88 Shore A
ShapeRound

Cable ducts

Quantity3
Cable ducts size (W x H)45 mm x 50 mm / 52 mm x 49 mm
Duct length (effective length)1,000 mm

Environmental

Fire protection class per DIN 4102-1B2
Inflammability (UL 94)V-2, HB
Ambient temperature-40 - 70 °C

Dimensions & weight

Length1,005 mm
Width607 mm
Height75 mm
Weight23.5 kg
Defender
85002BLK
