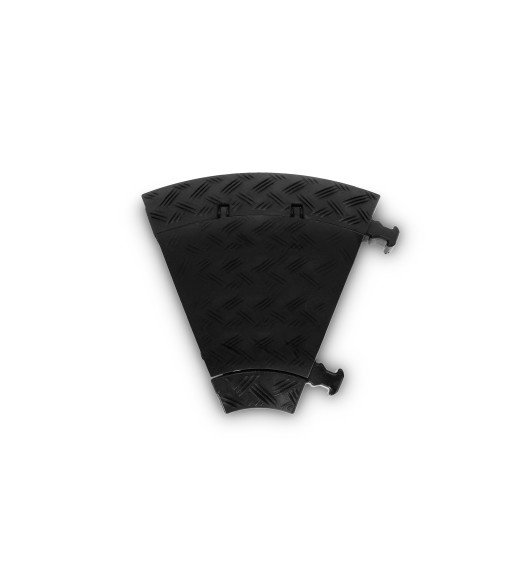

Defender Cable protector 3 channels - black - 45° curve right - medium load - height 5cm

1.699,00 kr.
Inkl. moms
3 small cable ducts - Lightweight and robust

The Defender® MINI Cable protector is available with a black or yellow cover and is suitable for both indoor and outdoor use. The flat, compact 3-channel Cable protector with integrated connecting pins and non-slip underside offers optimum grip on a wide variety of floors. Separately available end pieces (male/female) ensure safe, organised cable entry and exit. Defender MINI Cable protectors can withstand a load of 2 tonnes on an area of 20 x 20 cm and allow light vehicles, trolleys and pedestrians to cross. Areas of application include carnival events, trade fairs, exhibitions, shopping centres and warehouses as well as stages, studios and broadcasting stations. Not suitable for road traffic.

Antal
Klar til afsendelse fra fjernlager

  • 45° bend RIGHT suitable for all products from the MINI series
  • Compact, non-slip cable protector made of black, recyclable polyurethane
  • Black polyurethane lid with high warning effect and secure locking mechanism
  • Patented self-cleaning lid hinge
  • 3 channels: 1 channel 35 x 35 mm, 2 channels 35 x 30 mm
  • Load capacity approx. 2 tonnes / 20 x 20 cm
  • Fire protection class E in accordance with DIN EN 13501-1 (B-s1 applied for)
  • Resistant to oil, acid, petrol and short-term contact with solvents
  • Reliable cable and personal protection for indoor and outdoor use
  • Not suitable for road traffic
  • TÜV Süd certified

General

MaterialTPU (Thermoplastic polyurethane)
Surface structureRibbed
ColourBlack
Lid colourBlack
Maximum load (on 20 x 20 cm)2 t
Load per axle4 t
Chemical resistanceOil
Chemical resistancePetrol
Chemical resistanceSolvents (short-term contact)
Shore hardness (±4 Shore A)88 Shore A
ShapeRound

Cable ducts

Quantity3
Cable ducts size (W x H)35 mm x 30 mm - 35 mm x 35 mm
Duct length (effective length)1,005 mm

Environmental

Meets CP65Yes
Fire protection class per DIN 4102-1B2
Fire protection class per EN 13501-1E
Inflammability (UL 94)HB
Inflammability (UL 94)V-2
Ambient temperature-30 - 60 °C

Dimensions & weight

Curve/Bend45 °
Length0.33 m
Width0.3 m
Height5 cm
Weight1.25 kg

Other properties

CertificationsGermany: TÜV Süd
Defender
85210R2BLK
