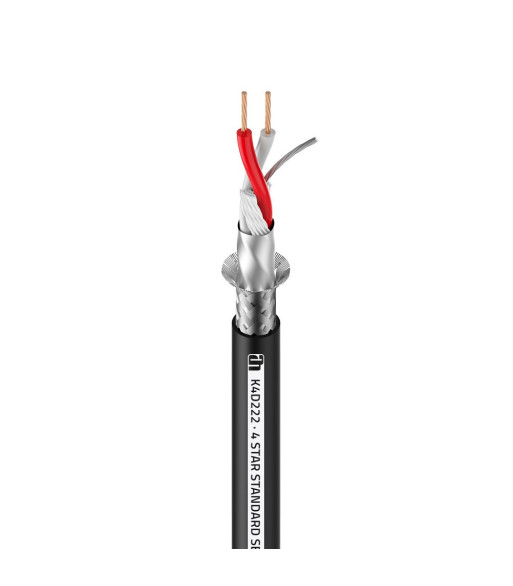

DMX, AES/EBU Kabel - 0.22 mm² AWG24 - 100 m - 100 meter

999,00 kr.
Inkl. moms
4 STAR DMX 222

THe 4 STAR D 222 is our absolute classic when it comes to transmission of DMX signals. You are in the end of your search, if you need a highly flexible cable with excellent transmission characteristics. Its tin copper braided shielding with AL/PT foil and drain wire, makes this cable being perfectly protected against external influences. Thanks to its extremely thin diameter it is easy to wind and very flexible, but also robust for hard road applications.

Antal
Klar til afsendelse fra fjernlager

  • Professional DMX, AES / EBU Cable from our 4 STAR "Standard" SERIES
  • Packaging unit: 100 m in one piece
  • Tinned copper braided shielding for optimum shielding behavior of 100%
  • Very good capacitance values of 60 pF / m
  • Very narrow diameter of 5.8 mm

Product typeBulk Cable
TypeDMX & AES/EBU Cable
ColorBlack
Overall diameter5.8 mm
AWG24
Center conductor cross section0.22 mm²
Center conductor materialOFC
Center conductor construction28 x 0.10 mm
Number of internal conductors2
ShieldTin-plated copper braided shield
Line surge impedance120 Ohm(s)
Line resistance< 85 Ohm(s)
Capacitance60 pF/m
Temperature range- 20 - 70 °C
Weight0.05 kg
Adam Hall Cables
K4D222

Produktinformation

Kabel: Stik - start
Rulle // åbne ender
Kabel: Stik - slut
Rulle // åbne ender
Kabel: Kvalitet
4 STAR
