DMX, AES/EBU Cable - 0.22 mm² AWG24 - 100 m - 100 meter

959,00 kr.
Inkl. moms

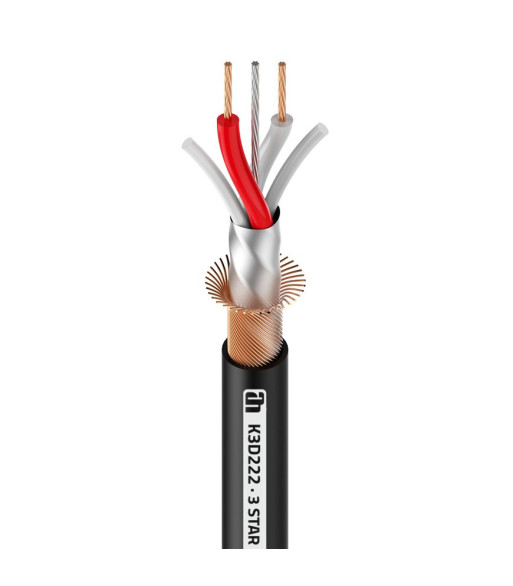

3 STAR DMX 222

The 3 STAR D 222 is our absolute classic when it comes to transmitting DMX signals. If you are looking for a highly flexible cable with excellent transmission properties, this is the cable for you. It is well protected against external influences by its copper spiral shield and the aluminium foil with stranded wires. Thanks to its extremely thin diameter, it is very easy to drum and flexible, but at the same time it is also robust and well suited for tough road use.

Antal
Klar til afsendelse fra fjernlager

  • DMX, AES / EBU cable from our 3 STAR SERIES
  • Packaging unit: 100 m in one piece
  • Copper spiral shielding for good shielding behavior and good bending properties
  • Good capacitance values of 45 pF / m
  • Very narrow diameter of only 5 mm

Product typeBulk Cable
TypeDMX & AES/EBU Cable
ColorBlack
Overall diameter5 mm
AWG24
Center conductor cross section0.22 mm²
Center conductor materialOFC
Center conductor construction7 x 0.20 mm
Number of internal conductors2
Shield materialcopper
ShieldSpiral shielding
Line surge impedance120 Ohm(s)
Line resistance85 Ohm(s)
Capacitance45 pF/m
Temperature range-20 - 70 °C
Weight0,05 kg
Adam Hall Cables
K3D222

Produktinformation

Kabel: Stik - start
Rulle // åbne ender
Kabel: Stik - slut
Rulle // åbne ender
Kabel: Kvalitet
3 STAR

Specifikke referencer
