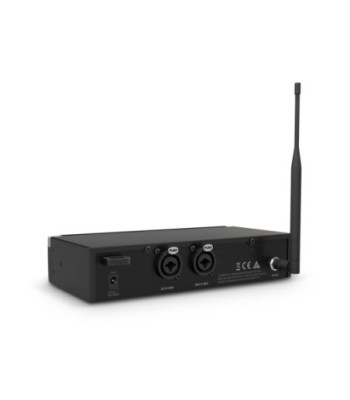

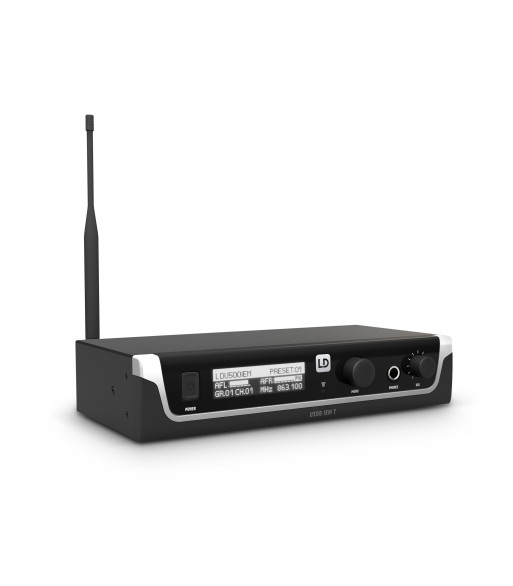

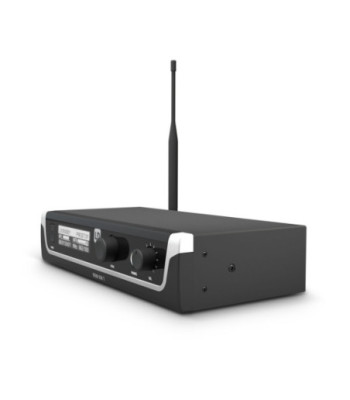

LD Systems Transmitter

2.419,00 kr.
Inkl. moms
U506 IEM T

Move freely on stage while the perfect monitor mix is delivered directly to your ears. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignment. In addition, you can save 10 custom presets. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear Systems noise floor is exceptionally low.

To deliver pristine, precise audio U500® IEM Transmitters include a 3-band EQ with parametric mids, a switchable limiter and a squelch circuit. They offer a choice of stereo or mono operation and provide a convenient direct monitoring headphone output.

Antal
Klar til afsendelse fra fjernlager

  • Reliable in-ear monitoring with more than 100 m range
  • 96 available channels
  • 2, 10 or 30 mW ERP selectable transmission power
  • Convenient infrared frequency syncing
  • Individual user name assignment and memory for 10 custom presets
  • Extended frequency response
  • 3-band EQ with parametric mids
  • Switchable limiter
  • Stereo and mono modes of operation
  • High-contrast OLED display
  • Transmitter with direct monitoring headphone output
  • Bodypack receiver with three selectable squelch levels
  • 10 h of bodypack receiver operation on two AA batteries
  • Simultaneous operation of up to 12 systems
  • U500® IEM transmitter compatible with U300® IEM bodypacks

Product typeIn-ear Monitoring Accessories
TypeTransmitters
Transmission frequency range655 - 679 MHz
Channels12
Modes of operationfocus/mono/stereo
Transmission methodFM, mono/stereo
Rated HF output powerVariable (2mW, 10mW, 30mW)
Frequency response40 - 16000
Signal-to-noise ratio93 dB
Total Harmonic Distortion (THD)0.3 %
Dynamic range88 dB
Inputs2
Input connectorsCombo TRS 6.3 mm
Input connectorsXLR (balanced)
Input impedance (kOhms)12 kOhm
Antenna connectorBNC
ControlsMenu selector Button
ControlsPower On/Off
Controlsvolume headphones
IndicatorsMultifunctional OLED-Display
Power supply12 - 18 V DC
Width212 mm
Height43 mm
Depth123 mm
Weight0,641 kg
Accessories (included)19" Rack mount kit
Accessories (included)BNC-Antenna
Accessories (included)power adapter
LD Systems
LDU506IEMT
