MONACOR Bånddiskant - RBT-95SR

569,00 kr.
Inkl. moms
Ribbon tweeter, 40 W, 8 _
  • Magnetostatic speaker with horn front attachment
  • Compared with RBT-95 and RBT-95SQ, increased power capability
  • Neodymium magnet system
  • Fine and brilliant reproduction of the high range, high efficiency
  • Ideally suited for 3-way speaker systems, 4-way speaker systems or for adding tweeters to full range speakers
  • Longitudinally grooved, slightly convex plastic front panel
HOBBY HiFi 03/2013

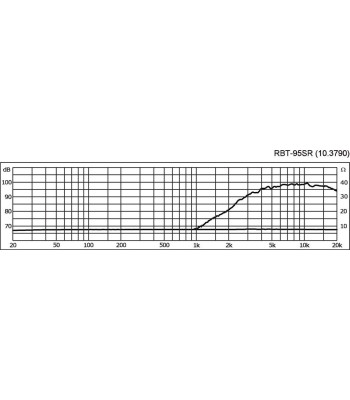

"With the RBT-95SR, MONACOR offers a magnetostatic tweeter at a very attractive price which ensures an excellent reproduction of the highest frequencies ... provides a very clean frequency response of high linearity which almost reaches 20 kHz."

Klang+Ton 02/2013
SPH-10M, MSH-115HQ, RBT-95SR and SAM-2 in the building concept 2DOT1
"A system of appealing design which provides an equally nice sound ... the speaker building concept features an amazing adaptability and almost unlimited settings ... incredibly suitable for everyday use, is capable of reproducing any kind of music and suitable for home cinema systems. The system provided an absolutely amazing sound when tested in the audio room. The small speakers appeared to reproduce the complete bass range. There was no way of locating the subwoofer. The tactics with the tiles achieved great results ... nothing trembles, even though a powerful bass speaker of a high power capability is set-up in the room. The satellites provide an extra light and high-resolution sound."
Antal
Klar til afsendelse fra fjernlager

Impedance (Z) 8 _
Line technique -
Frequency range fx-22,000 Hz
Resonant frequency (fs) 3,500 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 5,000 Hz
Power rating 40 W
Peak music power output 70 W
Sensitivity 98 dB/W/m
Max. rated SPL
Max. voltage
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms)
Moving mass (Mms)
Mech. Q factor (Qms)
Electr. Q factor (Qes)
Total Q factor (Qts)
Equivalent volume (Vas)
DC resistance (Re)
Force factor (BxL)
Voice coil induct. (Le)
Voice coil diameter -
Voice coil former
Linear excursion (XMAX)
Eff. cone area (Sd)
Magnet weight
Magnet diameter magnetostatic speaker
Mounting cutout 82 x 47 mm
Mounting depth 43 mm
Mounting hole diameter
Hole spacing X-axis
Hole spacing Y-axis
Dimensions 68 x 95 x 43 mm
Outside diameter
Width
Height
Depth
Protective class
Admiss. ambient temp.
Weight 177 g
Sales unit
Type of speaker
RBT-95SR
