MONACOR Zonemixer - PA-4040MPX

2.809,00 kr.
Inkl. moms

4-zoners mixer, til generel "multi-room" anvendelse.

  • 4 zoner med routing-funktion for alle indgange
  • 3 mikrofon-/line-indgange
  • 2 stereo indgange, phono
  • Alle indgange har gain, 2-vejs tonekontrol og zonevælger
  • Mikofonindgange med +15 V phantom strømforsyning
  • Prioritet for kanal 1
  • Separat paging-indgang, som kan routes til alle zoner
  • 4 zone-udgange, som kan justeres individuelt
  • Tilslutning for monitorhøjttaler
  • VU-meter til zone og monitor
  • Justerbar hovedtelefonudgang
  • Tilsluttes stikkontakt eller benytter 24 V nødstrømforsyning



Antal
Klar til afsendelse fra fjernlager

Channels 5
Zones 4
Power rating -
Power rating at 2 _ -
Power rating at 4 _ -
Power rating at 8 _ -
Power rating at 100 V -
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Peak music power output (PMAX) -
Output impedance -
Inputs 5 mV/4 k_, 100 mV/10 k_ (mic/line),
100 mV/30 k_ (line)
Attenuation factor -
Frequency range 50-17,000 Hz
Crossover network -
Crossover frequency -
Integrated limiter -
Equalizer bass ± 10 dB/100 Hz
Equalizer midrange -
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 65 dB (mic),
> 75 dB (line)
Crosstalk attenuation -
THD < 1%
Power supply _ 230 V/50 Hz/20 VA,
DC current  24 V/600 mA
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 20 VA
Power consumption, standby -
Standby current -
Operating voltage (possible alternative) DC current  24 V
Power supply (possible alternative) DC current  600 mA
Admiss. ambient temp. 0-40 °C
Dimensions 482 x 133 x 220 mm, 3 RS
Width 482 mm
Height 133 mm
Depth 220 mm
Rack spaces, RS 3
Weight 4.5 kg

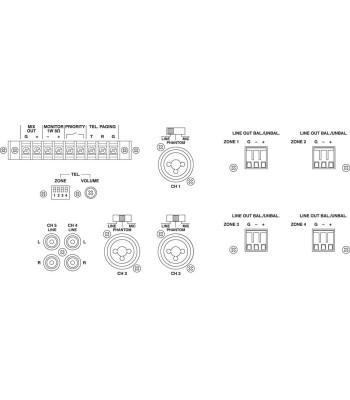

Connections 3 x combo 6.3 mm/XLR (mic/line),
2 x RCA L/R (line),
4 x plug-in screw terminal (zones),
screw terminal (monitor speakers),
screw terminal (mix out),
screw terminal (paging),
screw terminal (priority)
PA-4040MPX
