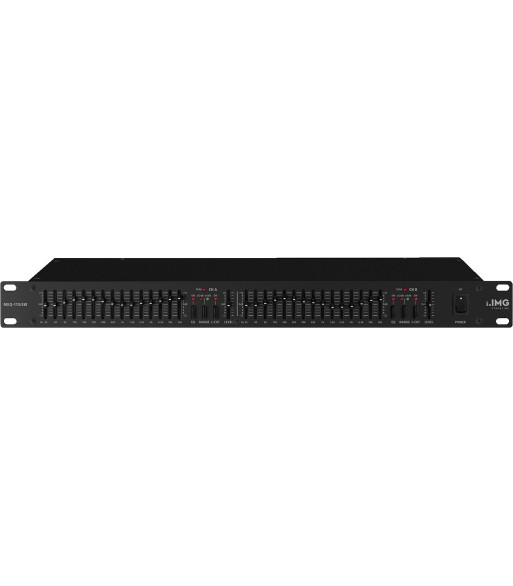

IMG STAGELINE Equalizer - MEQ-115/SW

1.449,00 kr.
Inkl. moms
Grafisk equalizer
  • 2-kanals version, 2 x 15 frekvensbånd af 2/3 oktav
  • ±6 eller ±12 dB
  • Peak LED
  • Low cut filter
  • Total volumenkontrol
  • Bypass og ground lift
  • Valg af frekvensbånd via centre click
  • Indgange og udgange via 2 x XLR og 2 x 6,3 mm jack

Antal
Klar til afhentning // afsendelse fra eget lager

Type graphic equalizer
Frequency range 20-20,000 Hz
Control range switchable ±6/±12 dB
Control frequencies 2 x 25/40/63/100/160/250/400/630 Hz/
1/1.6/2.5/4/6.3/10/16 kHz
Input signal 0.775 V
Input sensitivity -
Input impedance 50 k_
Output signal 0.775 V
Output impedance 600 _
Gain -
Phantom power -
Compression -
Gate ratio -
Crossover frequency -
High-pass filter -
Low cut 20 Hz/-3 dB
Transmission ratio -
S/N ratio 66 dB
Channel separation -
THD < 0.1%
Admiss. ambient temp. 0-40 °C
Power supply _ 230 V/50 Hz/10 VA
Dimensions 482 x 44.5 x 165 mm, 1 RS
Weight 2.5 kg
Inputs 2 x XLR, 2 x 6.3 mm jack
Outputs 2 x XLR, 2 x 6.3 mm jack
Other features -
IMG STAGELINE
MEQ-115/SW
1 Enhed
