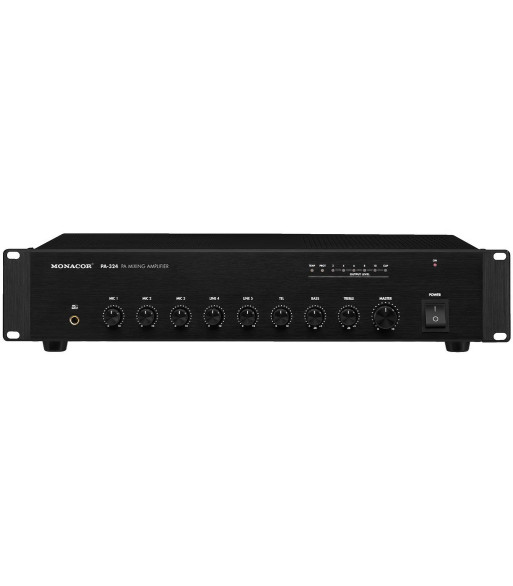

MONACOR 100V forstærker 1x240Wrms - PA-324

4.769,00 kr.
Inkl. moms
Mono PA mixing amplifier
  • 1 x 240 W
  • 3 microphone inputs, one of which is a balanced input
  • Mic 1 with priority circuit and adjustable automatic talkover
  • 2 aux inputs
  • 1 telephone input for telephone systems with audio output
  • Speaker outputs via screw terminals
  • 1 line output
  • Input and output level controls
  • 2-way tone control for the output
  • 48 V phantom power for channel 1, can be switched on additionally
  • 482 mm (19") rack installation with supplied mounting brackets
Antal
Klar til afsendelse fra fjernlager

Channels 6
Zones -
Power rating 240 W
Power rating at 2 _ -
Power rating at 4 _ -
Power rating at 8 _ -
Power rating at 100 V -
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Peak music power output (PMAX) 340 W
Output impedance -
Inputs 5 mV/600 _ (mic),
350 mV/10 k_ (aux),
1 V/10 k_ (telephone)
Attenuation factor -
Frequency range 50-16,000 Hz
Crossover network -
Crossover frequency -
Integrated limiter -
Equalizer bass ± 10 dB/100 Hz
Equalizer midrange -
Equalizer treble ± 10 dB/10 kHz
S/N ratio 66 dB (mic)
80 dB (aux)
Crosstalk attenuation -
THD < 0.5%
Power supply _ 230 V/50 Hz/740 VA
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 740 VA
Power consumption, standby -
Standby current -
Operating voltage (possible alternative) -
Power supply (possible alternative) -
Admiss. ambient temp. 0-40 °C
Dimensions 430 x 88 x 380 mm, 2 RS
Width 430 mm
Height 88 mm
Depth 380 mm
Rack spaces, RS 2
Weight 16.6 kg
Connections 1 x 6.3 mm/XLR (combo),
1 x 6.3 mm jack (mic 1),
2 x 6.3 mm jack (mic 2-3),
2 x RCA L/R (aux 1-2),
screw terminals (telephone),
1 x RCA L/R (line out)
PA-324
