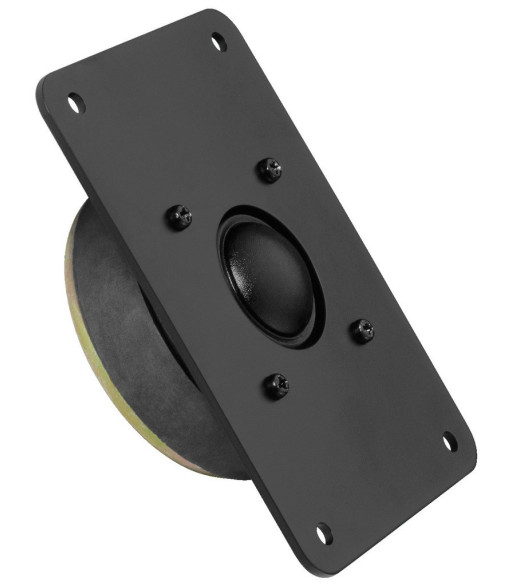

MONACOR 1´´ dome tweeter - DT-100

309,00 kr.
Inkl. moms
Hi-fi dome tweeter, 30 W, 8 _
  • Soft dome of high power capability, classic rectangular size
  • Ferrofluid
  • Good linearity with extra brilliant characteristics
  • Reproduction rich in detail
Antal
Klar til afhentning // afsendelse fra eget lager

Impedance (Z) 8 _
Line technique -
Frequency range fx-20,000 Hz
Resonant frequency (fs) 1,500 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,500 Hz
Power rating 30 W
Peak music power output 60 W
Sensitivity 92 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter Ø 25 mm
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter Ø 70 mm
Mounting cutout Ø 72 mm
Mounting depth 26 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions 116 x 80 x 26 mm
Outside diameter -
Width 116 mm
Height 80 mm
Depth 26 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 0.525 kg
Sales unit 1
Type of speaker -
DT-100
