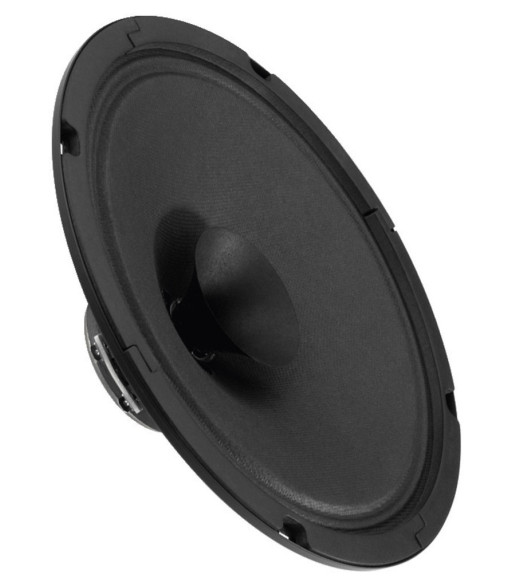

MONACOR 8´´ højttaler - SP-205/8

201,00 kr.
Inkl. moms
Universal full range speaker, 8 W, 8 _
  • Dual cone
  • For PA applications and other purposes
  • Particularly suitable for multiple arrangements in column speakers
  • Excellent sound quality
Klang+Ton 06/2013
"Built into an open cabinet (Cheap Trick 269), this speaker provides features which are clearly above its price class and can clearly be considered high-end. Like all the other full range speakers of this design, it also needs a break-in period to demonstrate its full capability. After about 6 months, you wouldn't give this speaker back, not even for far more than you paid for it."
Antal
Klar til afsendelse fra fjernlager

Impedance (Z)8 _
Line technique-
Frequency range-
Resonant frequency (fs)100 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating8 W
Peak music power output10 W
Sensitivity94 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameter-
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-

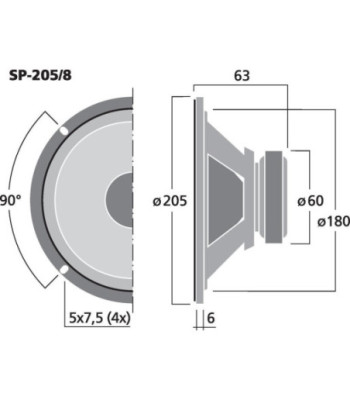

Magnet weight79 g
Magnet diameterØ 60 mm
Mounting cutout180 mm
Mounting depth57 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 205 mm x 63 mm
Outside diameterØ 205 mm
WidthØ 205 mm
Height-
Depth63 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight0.379 kg
Sales unit1
Type of speaker-
SP-205/8
