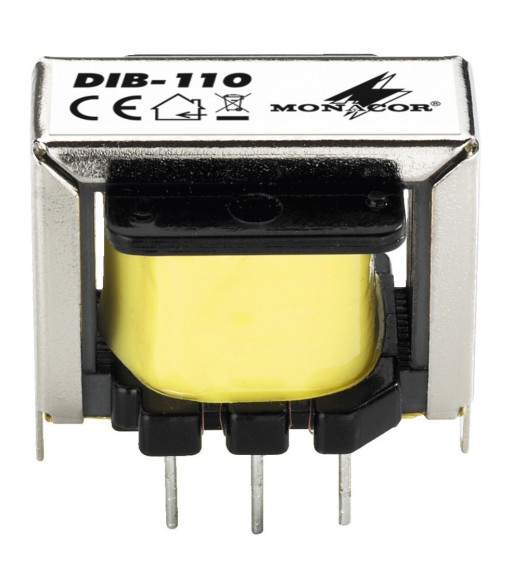

MONACOR Linietransformator - DIB-110

118,00 kr.
Inkl. moms
DI transformer 10:1
  • Unshielded version with PCB connections
  • Wideband version
  • Change from unbalanced to balanced and vice versa
  • Galvanic isolation to avoid/eliminate hum loops
  • Max. input voltage: 5 V (1% THD/40 Hz)
When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.
Antal
Klar til afsendelse fra fjernlager

Type DI box
Frequency range 15-30,000 Hz
Control range -
Control frequencies -
Input signal -
Input sensitivity -

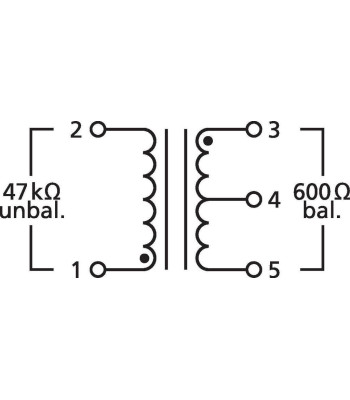

Input impedance 47 k_, unbal.
Output signal -
Output impedance 600 _, bal.
Gain -
Phantom power -
Compression -
Gate ratio -
Crossover frequency -
High-pass filter -
Low cut -
Transmission ratio 10:1
S/N ratio -
Channel separation -
THD -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions 25 x 24 x 21 mm
Weight 28 g
Inputs PCB connections
Outputs PCB connections
Other features -
DIB-110
