MONACOR 6 1/2´´ højttaler - SPH-174KE

309,00 kr.
Inkl. moms

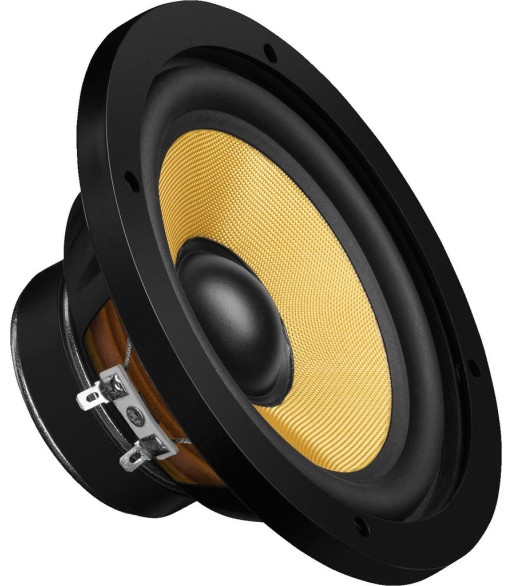

Hi-fi bass-midrange speaker, 50 W, 8 _

  • Hi-fi bass-midrange speaker of classic design
  • High-quality Kevlar cone
  • Robust sheet steel basket with 4-hole screw connection
  • Very linear frequency response
  • For universal use in closed, bass-reflex and TML cabinets
  • Including plastic trim ring for basket (Ø 175 mm x 11 mm)


Klang+Ton, 5/2018
_Bass-midrange speaker with excellent technical features available at an attractive price and particularly suitable for closed cabinets._
HOBBY HiFi 06/2018
_An excellent bass-midrange speaker for a cost-efficient 2-way project. Hobby HiFi concept MONA, edition 06/2018_

Antal
Klar til afsendelse fra fjernlager

Impedance (Z) 8 _
Transmission method -

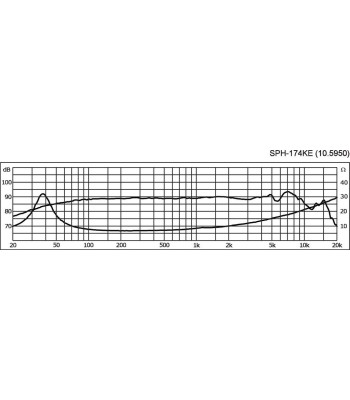

Frequency range f3-8,000 Hz
Resonant frequency (fs) 42 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating (RMS) 50 W
Peak music power output (MAX) 100 W
Sensitivity 88 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) 0.98 mm/N
Moving mass (Mms) 14.23 g
Mech. Q factor (Qms) 2.59
Electr. Q factor (Qes) 0.64
Total Q factor (Qts) 0.51
Equivalent volume (Vas) 26 l
DC resistance (Re) 6.39 _
Force factor (BxL) 5.91 Tm
Voice coil induct. (Le) 0.43 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 3 mm
Eff. cone area (Sd) 137 cm2
Magnet weight 320 g
Magnet diameter Ø 80 mm
Mounting cutout Ø 145 mm
Mounting depth 68 mm
Mounting hole diameter Ø 158 mm
Hole spacing X-axis 111.7 mm
Hole spacing Y-axis 111.7 mm
Dimensions _168 mm x 75 mm
Outside diameter Ø 168 mm
Width Ø 168 mm
Height -
Depth 75 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 0.78 kg
Packing unit 1
Type of speaker 6.5"
SPH-174KE
