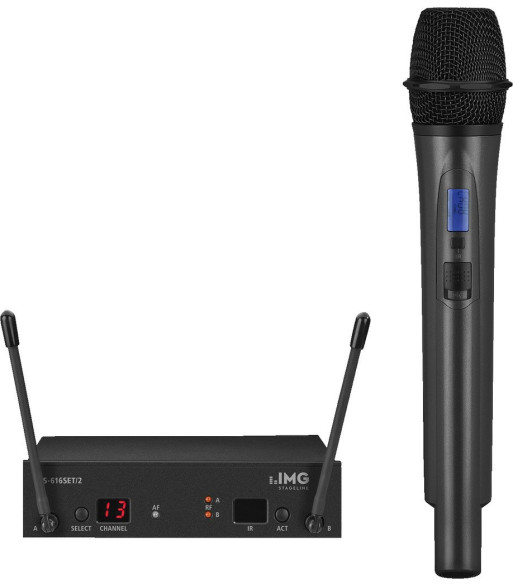

IMG STAGELINE Trådløs mikrofonsæt - TXS-616SET/2

1.839,00 kr.
Inkl. moms

Multifrequency microphone system,
with UHF PLL technology.

  • 1 hand-held microphone transmitter, 1 receiver, 1 plug-in power supply
  • True diversity system
  • 80 selectable UHF channels (672.000-691.750 MHz)
  • ACT function for transmitting selected frequency to the hand-held microphone via infrared signal
  • Auto-scan
  • Volume and squelch controls
  • Transmitting power can be switched at the hand-held microphone (high/low)
  • Indication for channel, antenna A/B, ACT status and AF audio level (receiver), channel and battery status (hand-held microphone)
  • Robust metal housing (receiver)



There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section _IMPORTANT INFORMATION_!

Antal
Klar til afsendelse fra fjernlager

LOG IND! Forspørg om prismatch, TILBUD på en eller flere varer

account_circle Forbindelse
General information -
Description wireless microphone system
Carrier frequency range 672-692 MHz
Audio frequency range 50-18,000 Hz
Channels 1
THD < 0.5%
Dynamic range 120 dB
RF S/N ratio 105 dB
Operating time -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions -
Total weight -
Connections -
Specifications transmitter -
Transmitting power < 25 mW/2.5 mW (EIRP)
Operating range ? 50 m
Power supply transmitter 2 x 1.5 V batt. AA size
Width transmitter 52 mm
Height transmitter 52 mm
Depth transmitter 275 mm
Weight transmitter 235 g
Connections transmitter -
Specifications receiver -
Audio signal receiver 350 mV/10 k_ (jack)

25 mV/10 k_ (XLR, bal.)
Power supply receiver via encl. plug-in power supply
Width receiver 152 mm
Height receiver 38 mm
Depth receiver 120 mm
Weight receiver 482 g
Connections receiver 1 x 6.3 mm jack, unbal.

1 x XLR, bal.
IMG STAGELINE
TXS-616SET/2
