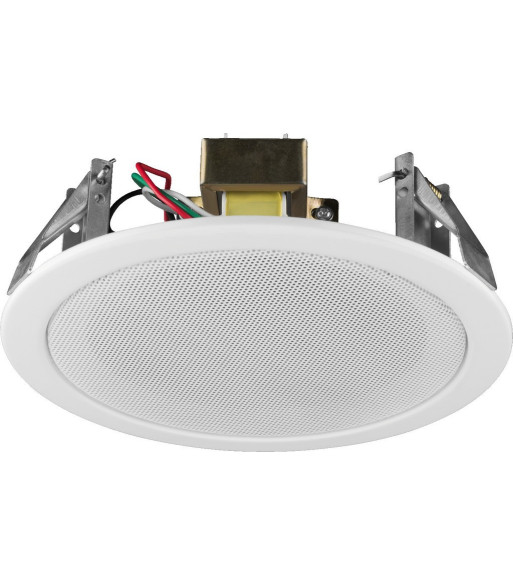

MONACOR 100V højttaler 6Wmax - EDL-15

309,00 kr.
Inkl. moms

PA ceiling speaker

  • 100 V line technique
  • 13 cm (5") full range speaker
  • Metal housing with protective speaker grille
  • Power taps: 6/3/1.5 W
  • Quick-mounting facility with spring clips
  • Connection via spring-loaded terminal
  • For a ceiling thickness from 10 to 40 mm

Antal
Klar til afsendelse fra fjernlager

Impedance (Z) -
Transmission method 100 V
Frequency range 100-16,000 Hz
Resonant frequency (fs) -
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating (RMS) 6/3/1.5 W
Peak music power output (MAX) -
Sensitivity 92 dB/W/m
Max. rated SPL 100 dB
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter -
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter -
Mounting cutout Ø 152 mm
Mounting depth 50 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 182 mm x 50 mm
Outside diameter Ø 182 mm
Width Ø 182 mm
Height -
Depth 50 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 0.6 kg
Packing unit 1
Type of speaker 130er
EDL-15
